Characterization of analog and digital control loops for bidirectional buck–boost converter using PID/PIDN algorithms
Journal of Electrical Systems and Information Technology volume 7, Article number: 6 (2020)
Abstract
This article presents the characterization of analog and digital control loops using PID/PIDN control algorithms for bidirectional buck–boost converter (BBC). Control loops of BBC are designed and implemented in MATLAB code using transfer functions in time domain with unit step response and in frequency domain with bode plots and polezero plots. These transfer functions are obtained by average large signal modeling of BBC. Actions of analog and digital control loops are characterized in order to ensure stability and dynamic response of BBC which is a bottleneck in renewable energy applications. Improvement in dynamic response and stability of BBC with PIDN control algorithm is demonstrated using bode plots, polezero plots, and step response. Control loop gain due to transfer functions of power stage and controllers is demonstrated, and it is found stable in both analog and digital control loops. PIDN compensator is proposed to maintain a healthy balance between the stability and transient behavior since both are indirectly proportional. BBC is modeled using average large signal modeling technique, simulated using MATLAB tool, and analysis of dynamic and stability response is done through unit step input, bode plot, and polezero plot. Hardware is designed and implemented using TMS320F28335 controller.
Introduction
In today’s technology worldwide, lots of changes are happening in almost all the domains. Most of the domains run on electric power which is being generated using sources like thermal, coal, nuclear, gas and so on. But these sources are nonrenewable sources that results in shortage of electric power in long run. Since the world is addicted to usage of technology and if there is no power available over which technology runs, world is going to end with traditional life style, and therefore the existing technology is working on some findings using which electric power is generated from renewable sources like solar energy, wind energy and fuel cell, etc. [1,2,3]. Output of these sources are DC power which can be stored using batteries when excess power is generated and at the same time when no power is available then power stored in batteries can be taken back for the loads also the energy generated by these renewable sources is fluctuating power and become unreliable system. This is the basic idea of finding of bidirectional DC–DC converter as power interface between main power and auxiliary energy storage system for efficient utilization power in the above said scenario [4,5,6,7,8]. The general architecture of bidirectional buck–boost converter in hybrid renewable energy system is shown in Fig. 1.
The BBC supposed to do the job of power conditioning among the loads, power storage systems, and DC bus. To do this, BBC has to be controlled in closedloop system, and therefore, the closedloop control mechanism needs to be tested with respect to stability and dynamic response.
Bode plots and polezero plots are the easiest tools to analyze the stability and dynamic response. Bode plots are used to measure the stability of such power converters in terms of gain margin, phase margin, damping factor, and bandwidth of control loops in frequency domain since time domain analysis is tedious [9]. There are two domains to develop and implement control loops for power converters: One is continuous time control loop as shown in Fig. 2a, and another one is discrete time control loop as shown in Fig. 2b.
When output voltage (V_{OUT}) is more than required magnitude, than the error voltage is going to be negative, compensator magnitude will increase that results in decreasing the duty cycle generated by the PWM function and the decreased duty cycle in turn results in reducing the output voltage. The same thing goes in opposite when output voltage is lower than the required magnitude. Control loops consist of voltage sensor and error signal generator; compensator and PWM function are having mainly three concerns: (1). Tracking which checks how close is the output to the commanded value, (2). Disturbance rejection which take care of how well does the output return to the proper value if the input voltage changes or the load changes or there is noise in the load signal voltage, and (3). Stability which ensures output signal does not run away.
In digital control loop, digital compensator is implemented. There are various control compensator algorithms like PID, PIDN, fuzzy PID, artificial neural network (ANN) and so on in terms of digital filters like IIR or FIR filters. Digital PWM is implemented with counter/timer/special hardware [10]. There is issue with digital control loop, i.e., delay time. Its time between sampling time and switching time. Delay time to be overcome such that sampling of output signal should happen at the middle of the offtime or middle of the ontime of PWM signal since switching instants are electrically very noisy [11].
Parallel PID/PIDN compensator is as shown in Fig. 2c. It takes the error signal (V_{ERROR}), and it is tuned by adjusting gain terms and generates the tuned signal (V_{EA}) which is input signal for PWM function. The tuned signal can either increase or decrease its magnitude based on positive or negative values of error signal in order to decide the stability and dynamic response of power stage. This compensator is good for one of the design where power stage characteristics are not well known.
The lowpass filter shown in Fig. 2c filter out the highfrequencynoise signal which is amplified by the differentiator. When the lowpass filter with huge value of filter coefficient (N) makes differentiator as pure differentiator, i.e., PID compensator that results in allowing highfrequency noise with control signal for power stage that in turn results in ripple in output signal [12]. When the value of filter coefficient (N) is nominal, i.e., equal to tuned value then the system is known as PID with filter called as PIDN.
The control loop of BBC either in analog or digital domain has gain known as loop gain T(s) which can be determined as shown in Fig. 2d. Each block of control loop has its own transfer function. Gain of a signal which goes around the control loop is usually constant for feedback function K(s) and PWM function G_{pwm}(s). Power stage design sets G_{VD}(s) and designer design compensator gain H_{EA}(s) so that T(s) gives desired dynamic response and stability [13].
For a control loop to be stable, loop gain is supposed to be \(\leq\) 1 at phase shift is \(\leq\) 180°. Also the phase at the crossover frequency indicates stability margin. Dynamic response is also determined with loop gain. Control loop has a faster transient response when the loop gain has higher crossover frequency where the loop gain crosses 0 dB. For fast response, preferred maximum phase shift is 135° at phase margin of 45°.
Bidirectional DC–DC converter
The half bridge nonisolated bidirectional buck–boost converter as shown in Fig. 3 is taken into account in further design (as per the specification given in Table 1), modeling, and simulation and implementation process. It consists of two MOSFET switches with builtin antiparallel diodes, one inductor, one ‘R’ load and two capacitors (one is at battery side and another one is at load side or DC bus side). It is a secondorder system since two storage elements like inductor and capacitor come into picture when BBC operates in either buck mode or boost mode at given particular point of time. Inductor is common for both the modes; however, consideration of capacitor will change based on mode [14]. Based on the equivalent circuit due to operating mode, mathematical modeling is carried out using average large signal modeling technique. Switch ‘s2’ is operating during boost mode and switch ‘s1’ is nonoperating. But in buck mode, it is vice versa. When switch ‘s2’ is on, energy gets stored in the inductor by the virtue of current flowing through it. When ‘s2’ is off, energy stored in inductor constitutes inductor voltage and supply voltage, i.e., battery voltage get added and will be fed to the DC bus through the inbuilt diode ‘D1’ of switch ‘s1’ this is called boosting of voltage, and hence it is called boost mode of operation.
Buck mode is coming into picture when switch ‘s1’ is operating and switch ‘s2’ is nonoperating. When switch ‘s1’ is on, load, i.e., battery and source, i.e., DC bus are connected in series through energy storage element, i.e., inductor therefore the output voltage which is fed to the battery is less than the DC bus voltage [15].
Mathematical modeling and control methods
To control the BBC in closed loop through modeling approach in analog and digital domain, PID and PIDN control methods are used and the method which gives best results and tradeoff between stability and dynamic response are projected. Using average large signal modeling technique, The BBC shown in Fig. 3 is modeled, and it finds the application right from renewable energy systems to automobile systems. Later transfer functions in Sdomain and Zdomain for each mode of operation are obtained based on the specification given in Table 1 by using MATLAB commands. Up next, based on transfer functions of powerstage of BBC, transfer functions in Sdomain and Zdomains of control algorithms of PID and PIDN are obtained. At last, using transfer functions of power stage of BBC and control algorithms of PID and PIDN, closedloop control responses are obtained in terms of step responses and bode plots in analog and digital domains using MATLAB commands. Simulation results are analyzed and compared w.r.t stability and dynamic responses in each mode of operation of BBC in both analog and digital domains in “Results and discussion” section.
During boost mode of operation of BBC, the state equation is shown by Eq. (1) and output equation is shown by Eq. (2).
During buck mode of operation of BBC, the state equation is shown by Eq. (3) and output equation is shown by Eq. (4).
Analog domain
Converter and controller models of BBC are designed in Sdomain based on mode of operation, either buck mode or boost mode and type of control; either open loop or closed loop. Considering the design specification given in Table 1, the openloop transfer function of boost mode (TF_{boost}) is obtained using Eqs. (1) and (2), and it is shown in Eq. (5) also the openloop transfer function of buck mode (TF_{buck}) is obtained using (3) and (4), and it is shown in Eq. (6).
The general equation for secondorder openloop transfer function is given by (6a).
Comparing Eq. (6a) with Eq. (5), the damping ratio is ζ = 0.1414 and natural angular frequency ω_{n} = 1414.21 rad/s. From this, it is clear that BBC in openloop system under boost mode is underdamped system that results in oscillatory transient response of BBC at the natural frequency in openloop control, i.e., without PID control, and it is as shown in Fig. 4.
Similarly, comparing Eq. (6a) with Eq. (6), the damping ratio is ζ = 11.11 and natural angular frequency ω_{n} = 2000 rad/s. From this, it is clear that BBC in openloop system under buck mode is overdamped system, i.e., no oscillations, but it takes more time to reach stability during turn ON and turn OFF of the MOSFET switch (S1) used in buck mode. Since in this mode, battery is the load that offers negligible internal resistance, and hence, system behaves as if it is firstorder system in openloop control, i.e., without PID control, and it is as shown in Fig. 12.
The general equation for secondorder closedloop transfer function is given by (6b).
For boost mode, analog closedloop controllers are designed with PID control who’s transfer function is given in Eq. (7) and PIDN control who’s transfer function is given in Eq. (8) with gain values which are obtained by autotuning of transfer function model of each mode of BBC in MATLAB tool.
PID control gains: kp = 4.63, ki = 1039.4, kd = 0.0048, n = 1,703,100. PIDN control gains: kp = 4.63, ki = 1039.4, kd = 0.0048, n = 17,031.
For buck mode, analog closedloop controllers are designed with PID control who’s transfer function is given in Eq. (9) and PIDN control who’s transfer function is given in Eq. (10) with gain values which are obtained by autotuning of transfer function model of each mode of BBC in MATLAB tool.
PID control gains: kp = 3.14, ki = 921.18, kd = − 0.0044, n = 778,000. PIDN control gains: kp = 3.14, ki = 921.18, kd = − 0.0044, n = 778.
Equation (11) is a model represents closedloop control of BBC in boost mode using PID controller in analog domain. This model is obtained by utilizing Eq. (5) represents converter being controlled in closed loop using Eq. (7) which represents controller.
Comparing equivalence of Eq. (11) with general equation of secondorder system given in Eq. (6b) obtains ζ = 0.98 and natural angular frequency ω_{n} = 2165.4 rad/s. From this, it is clear that BBC in closedloop system under boost mode using PID controller is underdamped system, and its step response is as shown in Fig. 8
This response has moderate oscillations compared to the response without PID control and it takes less time to reach stability as shown in Table 2 during turn ON and turn OFF of the MOSFET switch (S2) used in this mode.
Equation (12) is a model represents closedloop control of BBC in boost mode using PIDN controller in analog domain. This model is obtained by utilizing Eq. (5) represents converter being controlled in closed loop using Eq. (8) which represents controller.
Comparing equivalence of Eq. (12) with general equation of secondorder system given in Eq. (6b) obtains ζ = 1.46 and natural angular frequency ω_{n} = 565.3 rad/s. From this, it is clear that BBC in closedloop system under boost mode using PIDN is overdamped system, and its step response is shown in Fig. 8.
Using PIDN controller, rise time and settling time is more compare to PID controller as shown in Table 2. Since the damping factor of PIDNbased closedloop control of BBC is more than the damping factor of PID controller.
Buck mode models of closedloop control of BBC are represented by Eqs. (12a) and (12b) using PID and PIDN controllers, respectively.
Converter being controlled in closed loop using Eq. (7) which represents controller.
Comparing equivalence of Eq. (12a) with general equation of secondorder system given in Eq. (6b) obtains ζ = 2.09 and natural angular frequency ω_{n} = 961.6 rad/s. From this, it is clear that BBC in closedloop system under buck mode using PID controller is overdamped system, and its step response is shown in Fig. 12.
This response has moderate oscillations compared to the response without PID control, and it takes less time to reach stability as shown in Table 5 during turn ON and turn OFF of the MOSFET switch(S1) used in this mode.
Equation (12b) is a model represents closedloop control of BBC in buck mode using PIDN controller in analog domain. This model is obtained by utilizing Eq. (6) represents converter being controlled in closed loop using Eq. (10) which represents controller.
Comparing the equivalence of Eq. (12b) with general equation of secondorder system given in Eq. (6b) obtains ζ = 0.47 and natural angular frequency ω_{n} = 765.179 rad/s. From this, it is clear that BBC in closedloop system under buck mode using PIDN is underdamped system, and its step response is shown in Fig. 12.
Analog closedloop control architecture of BBC is shown in Fig. 4. Considering H(s) = unity. Openloop and closedloop models are implemented in MATLAB tool. Based on mode of operation, MATLAB code is developed for analog control of boost mode and buck mode of operation of BBC. Using Eqs. (5)–(10) a block diagram of the analog closedloop control with PID and PIDN controller is obtained, and it is shown in Fig. 4.
Digital domain
There are two basic methods to design a digital control for the system to be controlled. First one is redesign method and other one is direct method. In this work of develop of digital controller for BBC, redesign method is used. Digital control system with digital PID and PIDN controllers is developed separately for BBC [16].
Digital transfer functions of BBC based on modes of operation are shown in Eqs. (13) and (14).These models are obtained using Tustin transformation with sampling time ‘t’ = 01 s, applied to boost mode and buck mode models of continuous systems given in Eqs. (5) and (6), respectively. Digital control system either openloop or closedloop control is stable when number of zeros should not be more than number of poles in the model otherwise at high frequencies, the gain of the system would be unbounded. The developed models represented in Eqs. (13)–(22) are not having zeros more than poles hence the developed models are stable digital systems. In addition, stability of these models are verified using bode plot and Zplane in the coming section.
Transfer function of Digital PID and PIDN controllers for BBC in boost mode control is given in Eqs. (15) and (16), respectively.
Transfer function of Digital PID and PIDN controllers for BBC in buck mode control is given in Eqs. (17) and (18), respectively.
Equation (19) is a model represents closedloop control of BBC in boost mode using PID controller in digital domain. This model is obtained by utilizing Eq. (13) represents converter being controlled in closed loop using Eq. (15) which represents controller.
Equation (20) is a model represents closedloop control of BBC in boost mode using PIDN controller in digital domain. This model is obtained by utilizing Eq. (13) represents converter being controlled in closed loop using Eq. (16) which represents controller.
Equation (21) is a model represents closedloop control of BBC in buck mode using PID controller in digital domain. This model is obtained by utilizing Eq. (14) represents converter being controlled in closed loop using Eq. (17) which represents controller.
Equation (22) is a model represents closedloop control of BBC in buck mode using PID controller in digital domain. This model is obtained by utilizing Eq. (14) represents converter being controlled in closed loop using Eq. (18) which represents controller.
Digital closedloop control architecture of BBC is as shown in Fig. 5. Considering H(Z) = 1. Openloop and closedloop models are implemented in MATLAB tool. Based on mode of operation, MATLAB code is developed for digital control of boost mode and buck mode of operation of BBC. Using Eqs. (13)–(18) a block diagram of digital closedloop control with PID and PIDN controller is obtained as shown in Fig. 5. From Fig. 5 it is understood that based on the value of load signal. The operating mode of BBC is changing between buck to boost mode and vice versa.
Simulation
In order to simulate the BBC in closedloop control with PID and PIDN control algorithms that are derived in “Mathematical modeling and control methods” section are implemented in MATLAB and solved using MATLAB facilities. The pseudocode for BBC in boost mode is shown in Fig. 6a and pseudocode for buck mode is shown in Fig. 6b. It consists of code for openloop and closedloop control of BBC using PID and PIDN algorithms in analog and digital domain. The program structure consists of converter parameters in terms of state equation (A & B) and output equation (C & D).From this, converter models in Sdomain (Gs) and Zdomain (GsD) are obtained. Again from this, controller models of PID and PIDN are obtained in Sdomain and Zdomain. By using converter model and controller model, closedloop model is developed separately for PID control and PIDN control in Sdomain and Zdomain. The MATLAB instructions used for the development of such models are given in Fig. 6a which represents BBC control in boost mode control and Fig. 6b which represents BBC in buck mode control. The step response, bode plots, and polezero plots of these models are obtained in openloop and closedloop control and presented in “Results and discussion” section.
Hardware
The hardware of bidirectional buck–boost converter which is controlled in closed loop using PIDN control algorithm with DSP controller (TMS320F28335) as shown in Fig. 7. It maintains the voltage stability using battery rated with 12 V, 7Ah in DC bus connected with renewable energy sources which provides unstable voltage for 57 Watt resistive load. Bidirectional buck–boost converter maintains stable voltage of 24 V and 2.4 A across DC bus with the help of battery by switching buck mode to boost mode and vice versa when any of the connected renewable energy sources gives variable voltage just because of variance in the sunlight/wind. The BBC works in buck mode when there is sufficient voltage on DC bus. In buck mode, BBC charges the battery with constant voltage of 12 V and 0.3 A. The BBC works in boost mode when there is no sufficient voltage on DC bus. In boost mode, BBC discharges the battery with constant voltage of 24 V and 2.4 A.
Results and discussion
The mathematical models of power stage and control stage of BBC in both openloop and closedloop control are developed, simulated, analyzed, and validated with respect to stability and dynamic response in MATLAB tool using PID and PIDN control laws in frequency domain as well as time domain. Since BBC works in two modes of operation for the purpose of power flow in both the directions, the determination of stability and dynamic response of each mode of operation is carried out separately.
(A). Stability and dynamic response in boost mode.
(B). Stability and dynamic response in buck mode.
 A.
Stability and dynamic response in boost mode
The validation of stability and dynamic response of BBC in boost mode operation is done through bode plots and polezero plots by making use of transfer function model given by Eq. (5) plots are developed using MATLAB code for the transfer functions. This feature becomes the base for the 1model to be embedded in design, simulation, and analysis. The approach of computational implementation through code is basically translates mathematical model to discrete programming code with various intermediate conversions in order to implement on hardware. The function ss2tf () does the job of converting the state space model of BBC in boost mode shown in Eqs. (1) and (2) into transfer function model in continuous frequency domain shown in Eq. (5) which is used to validate the step response in open loop and closed loop using PID and PIDN control in time domain. While bode plots and polezero plots in frequency domain measure the stability of both analog and digital control loops.

(i)
Dynamic response
Transient response of BBC working in boost mode using unit step input is as shown in Fig. 8. From Fig. 8 various parameters are listed in Table 2. These parameters define the behavior of BBC for unit step input. If it is understood, then it is easy to understand the behavior of BBC for any type of input signal applied to it. PIDN controller has three control actions (proportional, integration and differentiation) along with filter operation which is associated with differentiator. Without filter with differentiator results in more noise termed as ripple in the load signal that will hinder the performance of the whole system. This is the issue with just PID control. The noise comes with sampled load signal gets amplified by differentiator therefore filter is connected in series with it. Better transient response can be obtained with just PID, whereas PIDN controller obtains better tradeoff between stability and dynamic response. This is the major requirement of any system design.

(ii)
Stability
It is easy to understand the variation of system parameters under frequency domain particularly the stability of closedloop control of either analog or digital loops for BBC where the output voltage supposed to have a tight regulation for change in input voltage and load. This is possible with perfect control loop. Estimation of stability using various parameters in bode plots and polezero plots give the information that how the output voltage varies with the variation of input voltage, duty cycle, and the load with respect to frequency. Also estimation of damping factor from bode plots gives the information about reaction time of the system.

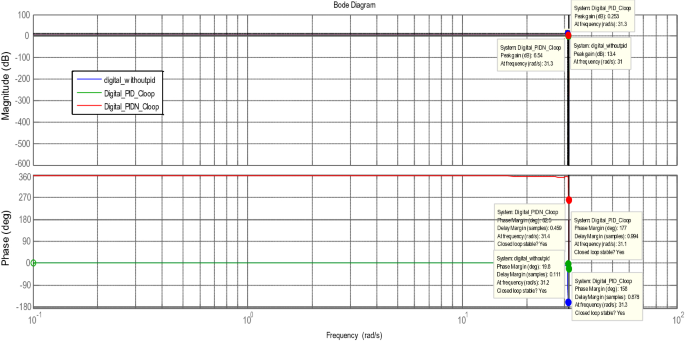

The frequency response of BBC in boost mode in analog domain is shown in Fig. 9 can be determined from transfer function using bode plots which is basically a graph of magnitude and phase of the transfer function as a function of frequency, where magnitude is plotted in decibels and phase in degrees. These plots reveal some key information about the control loop’s performance. The first point of interest is the crossover frequency (f_{c}). Here, BBC in boost mode is showing 9.13 kHz under PIDN control. This is the frequency at which the control loop gain is unity (0 dB) and is also referred to as the loop bandwidth. The second point of interest is the place at which the phase lag reaches 180°. In this case, its infinity under PIDN control. The phase margin (PM) equals 180° minus the phase lag at f_{c}. In this case its 82.6°. The gain margin (GM) is the gain at a phase lag of 180°. In this case, its infinity under PIDN control. The system will be stable if the phase lag at f_{c} is less than 180°. Here in buck mode under PIDN control, its 82.6° therefore it’s stable. For most control loops, the engineers aim to achieve a PM greater than 45° and less than 180°.
Typically, a phase margin of 45° provides good transient response with good damping. For buck or boost switching system, the gain margin (GM) should be above 10 dB. In this case, GM is infinity. The data which defines the stability of BBC in boost mode with PID and PIDN control loops is extracted from bode plots of analog domain which is as shown in Fig. 9 and is tabulated in Table 3. Similarly, the data which defines the stability of BBC in boost mode with PID and PIDN control loops is extracted from bode plots of digital domain which is as shown in Fig. 10 and is tabulated in Table 4.

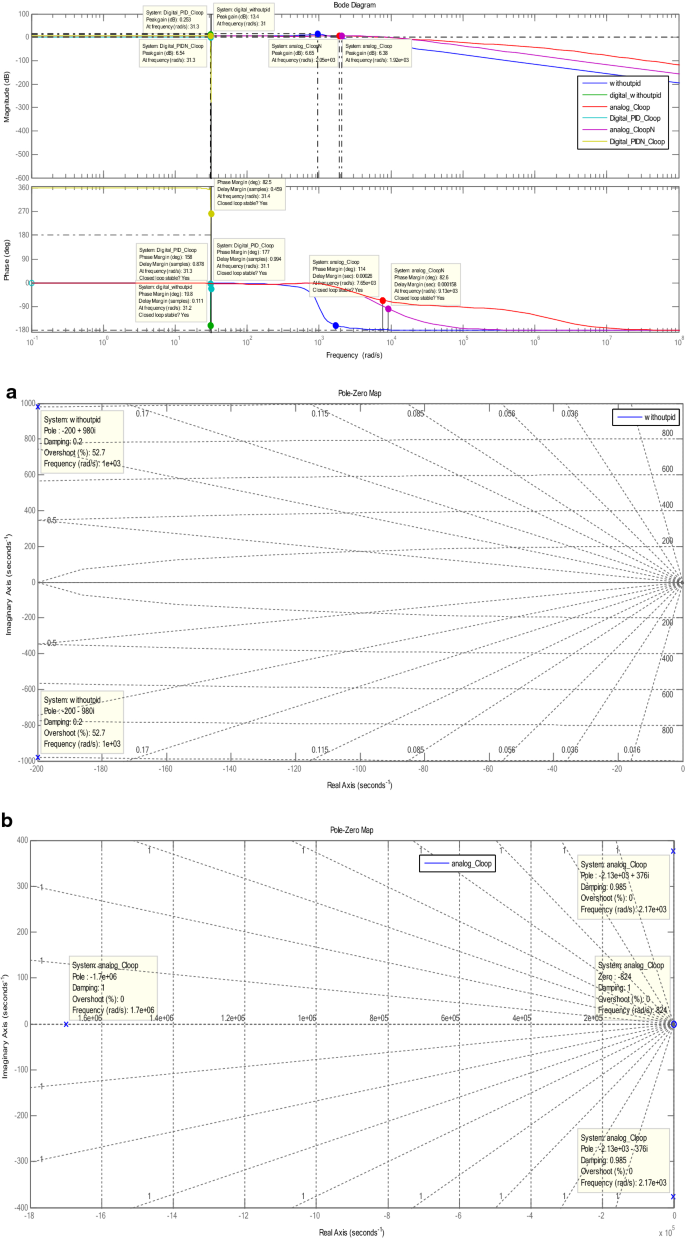

Polezero plot in analog domain for BBC in boost mode is demonstrated in open loop and closed loop using PID and PIDN as shown in Fig. 11a–c. From the figures, it is clear that BBC in boost mode is stable with various damping factors and overshoots in openloop control as well as in closedloop control since all the poles and zeros of all the systems are lying in the lefthand side of Splane.
Polezero plot in digital domain for BBC in boost mode is demonstrated in open loop and closed loop using PID and PIDN as shown in Fig. 11d. From the figure, it is clear that the BBC in boost mode is stable with various damping factors and overshoots in openloop control as well as in closedloop control since all the poles and zeros of all the systems are lying within the unit circle of Zplane.

B.
Stability and dynamic response in buck mode
Stability of the system is determined in frequency domain using transfer function of the same system. The transfer function for the BBC working in buck mode is developed using Eqs. (3) and (4) in MATLAB function ss2tf() and it is as shown in Eq. (6). Stability and dynamic response of BBC in buck mode of operation are characterized in frequency and time domain respectively using bode plot, polezero plot, and unit step response.

(i)
Dynamic response
For BBC, dynamic response is coming into picture during switching of the switch ‘S1' for buck mode of operation. To improve the dynamic response of BBC, PID and PIDN controllers are designed for BBC in both analog and digital domain. The dynamic response of BBC in buck mode is as shown in Fig. 12. Table 5 contains the characteristic properties of control loops for step input. Even in buck mode, PIDN gives better tradeoff between stability and dynamic response.

(ii)
Stability
It is easy to understand the variation of system parameters under frequency domain particularly the stability of closedloop control of either analog or digital loops for BBC where the output voltage supposed to have a tight regulation for change in input voltage and load. This is possible with perfect control loop. Estimation of stability using various parameters in bode plots and polezero tools gives the information that how the output voltage varies with the variation of input voltage, duty cycle and the load with respect to frequency. Also estimation of damping factor from bode plots gives the information about reaction time of the system.
The frequency response of BBC in buck mode in analog domain is shown in Fig. 13 can be determined from transfer function using bode plots which is basically a graph of magnitude and phase of the transfer function as a function of frequency, where magnitude is plotted in decibels and phase in degrees. These plots reveal some key Information about the control loop’s performance. The first point of interest is the crossover frequency (f_{c}). Here, BBC in buck mode is showing 360 Hz under PIDN control. This is the frequency at which the control loop gain is unity (0 dB) and is also referred to as the loop bandwidth. The second point of interest is the place at which the phase lag reaches 180°. In this case, its 5.74 kHz under PIDN control The phase margin (PM) equals 180° minus the phase lag at f_{c}. In this case, its 122°. The gain margin (GM) is the gain at a phase lag of 180°. In this case, its 40.8 dB under PIDN control. The system will be stable if the phase lag at f_{c} is less than 180°. Here in buck mode under PIDN control, its 120°, and therefore, it is stable. For most control loops, the engineers aim to achieve a PM greater than 45° and less than 180°. Typically, a phase margin of 45° provides good transient response with good damping. For buck or boost switching system the gain margin should be above 10 dB. In this case, GM is 40.8 dB. The data which defines the stability of BBC in buck mode with PID and PIDN control loops is extracted from bode plots of analog domain which is shown in Fig. 13 and is tabulated in Table 6. Similarly, the data which defines the stability of BBC in buck mode with PID and PIDN control loops is extracted from bode plots of digital domain which is as shown in Fig. 14 and is tabulated in Table 7.
From digital control technology, it is known that delay in control loop is more compare to analog control loop which offers minimum delay in loop, since the delay offered by ADC and DPWM is more in digital control that results in minimum control loop band [17, 18]. In hybrid renewable energy harvesting where power control system is used, the closedloop control bandwidth plays an important role in the determination of sensitivity of power conditioning unit for transients which occur during switching instants [19,20,21]. But for the practical realization of advanced control algorithms cannot be possible with analog control systems. In addition to its environmental issues, it causes aging effects for analog control systems [22,23,24,25]. Using digital control systems, logic as well as input and output parameters can be easily modified as and when required [26]. Based on this knowledge, observing the data taken from analog and digital domain control of BBC through bode plots and listed in Tables 6 and 7.
Digital control loop offers more delay margin than analog control loop because of sampling process by ADC and quantization process by DPWM blocks in digital control loop [26]. These issues can be addressed using special type of control techniques like deadbeat digital control technique where sampling takes place for every switching cycle w.r.t. current considered as input to the loop from power stage [27]. There is a one more technique where multisampling of current is done by executing the control algorithm at frequency twice that of the converter frequency. This technique reduces DPWM delay for the maximum extent [28] (Fig. 15).

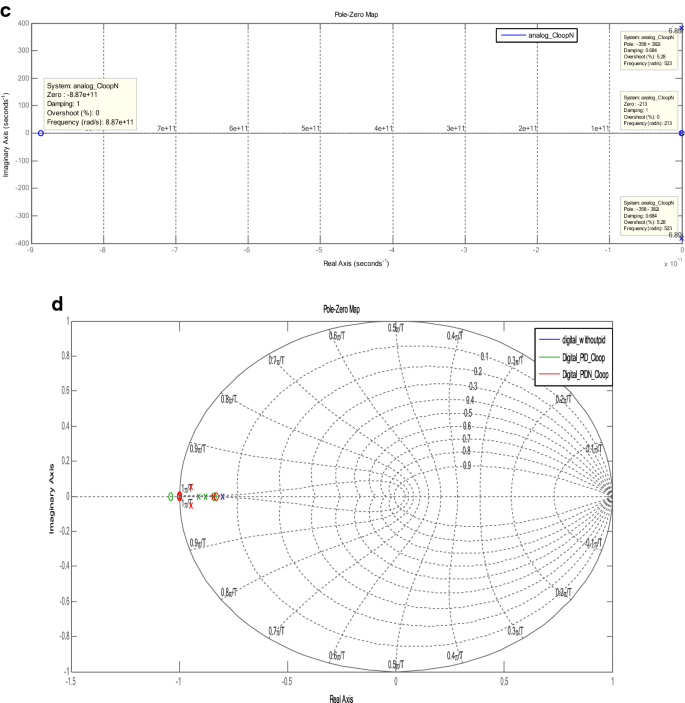

PoleZero plot in analog domain for BBC in buck mode is demonstrated in open loop and closed loop using PID and PIDN as shown in Figs. 16a–c. From the figures, it is clear that BBC in buck mode is stable with various damping factors and overshoots in openloop control as well as in closedloop control, all the poles and zeros of all the systems are lying in the lefthand side of Splane.
Digital domain control gives more accuracy of control. Polezero plot in digital domain for BBC in buck mode is demonstrated in open loop and closed loop using PID and PIDN as shown in Fig. 16d. From the figure, it is clear that the BBC in buck mode is stable with various damping factors and overshoots in openloop control as well as in closedloop control with PIDN but not with PID control. One zero of PID is lying outside the unit circle since PID amplifies ripples along with load signal that will dilute the expected duty cycle of control signal in charging mode(buck mode). This issue is solved by PIDN control.
Conclusion
Control loop gains of BBC in both analog and digital domain are characterized using bode plots and polezero plots and found to be less than unity, and it is much better with PIDN control law which filter out the noise due to switching exits in load signal. Loop gain factor indicates that the system is stable with analog and digital control loops that results in good reliability of the system. Mathematical modeling is the key factor to develop stability and dynamic response analysis and correction can be incorporated for desired stability and dynamic response. Transfer functions of power stage are made to develop control loops which are implemented on digital signal processor (DSP) for the control of BBC prototype.
Further with same transfer function models of power stage, control algorithms like, adoptive PID, fuzzy logic with PIDN, model predictive control, intermediate control, neuroFPGA and machine learning can be used to develop digital control loops which makes the control loop as smart control loop in digital control technology for power converters.
Availability of data and materials
(1). Mathematical models of PID and PIDN control loops. (2). MATLAB code of control algorithms. (3) Simulation results and data obtained by hardware.
Abbreviations
 BBC:

Bidirectional buck–boost converter
 PID:

Proportional–integral derivatives
 PIDN:

Proportional–integral derivative with derivative filter order ‘N’
 ADC:

Analogtodigital converter
 DPWM:

Digital pulsewidth modulation
 DSP:

Digital signal processing
 PM:

Phase margin
 GM:

Gain margin
 HEVs:

Hybrid electric vehicles
 FCEVs:

Fuel cell electric vehicles
 ω _{g} :

Frequency response of gain margin
 ω _{p} :

Frequency response of phase margin
 inf:

Infinity
 ss2tf:

State space to transfer function
 ζ :

Damping ratio
 ω _{n} :

Natural angular frequency
 TF_{boost} :

Transfer function of BBC in boost mode
 TF_{buck} :

Transfer function of BBC in buck mode
 G_{Cboost}(S):

Transfer function of PID controller for BBC in boost mode
 G_{CNboost}(S):

Transfer function of PIDN controller for BBC in boost mode
 G_{Cbuck}(S):

Transfer function of PID controller for BBC in buck mode
 G_{CNbuck}(S):

Transfer function of PIDN controller for BBC in buck mode
 G_{Pboost}(Z):

Digital transfer function of BBC in boost mode
 G_{Pbuck}(Z):

Digital transfer function of BBC in buck mode
 G_{Cboost}(Z):

Digital transfer function of PID controller for BBC in boost mode
 G_{CNboost}(Z):

Digital transfer function of PIDN controller for BBC in boost mode
 G_{Cbuck}(Z):

Digital transfer function of PID controller for BBC in buck mode
 G_{CNbuck}(Z):

Digital transfer function of PIDN controller for BBC in buck mode
 M(s)_{CboostPID} :

Analog transfer function of closedloop control of BBC using PID controller in boost mode
 M(s)_{CboostPIDN} :

Analog transfer function of closedloop control of BBC using PIDN controller in boost mode
 M(s)_{CbuckPID} :

Analog transfer function of closedloop control of BBC using PID controller in buck mod
 M(s)_{CbuckPIDN} :

Analog transfer function of closedloop control of BBC using PIDN controller in buck mode
 M(z)_{CboostPID} :

Digital transfer function of closedloop control of BBC using PID controller in boost mode
 M(z)_{CboostPIDN} :

Digital transfer function of closedloop control of BBC using PIDN controller in boost mode
 M(z)_{CbuckPID} :

Digital transfer function of closedloop control of BBC using PID controller in buck mode
 M(z)_{CbuckPIDN} :

Digital transfer function of closedloop control of BBC using PIDN controller in buck mode
References
Viswanatha V, Venkata Siva Reddy R (2018) Microcontroller based bidirectional buck–boost converter for photovoltaic power plant. J Electric Syst Inf Technol 5(3):745–758
Viswanatha V, Reddy RVS (2017) Digital control of buck converter using arduino microcontroller for low power applications. In: 2017 international conference on smart technologies for smart nation (SmartTechCon), Bangalore, 2017, pp 439–443
Viswanatha V, Venkata Siva Reddy R. Modeling, simulation and analysis of noninverting buckboost converter using PSIM. In: 2016 international conference on circuits, controls, communications and computing (I4C), Bangalore, 2016, pp 1–5
Ravi D et al (2018) Bidirectional DC to DC converters: an overview of various topologies, switching schemes and control techniques. Int J Eng Technol. 7(4):360–365
Caricchi F, Crescimbini F, Capponi FG, Solero L (1998) Study of bidirectional buckboost converter topologies for application in electrical vehicle motor drives. APEC’98 Thirteen Annu Appl Power Electron Conf Expo 1:287–293
Lai JS, Nelson DJ (2007) Energy management power converters in hybrid electric and fuel cell vehicles. Proc IEEE 95(4):766–777
Emadi A, Williamson SS, Khaligh A (2006) Power electronics intensive solutions for advanced electric, hybrid electric, and fuel cell vehicular power systems. IEEE Trans Power Electron 21(3):567–577
Plesko H, Biela J, Luomi J, Kolar JW (2008) Novel concepts for integrating the electric drive and auxiliary DC–DC converter for hybrid vehicles. IEEE Trans Power Electron. 23(6):3025–3034
Gorji SA, Ektesabi M, Zheng J. Doubleinput boost/Ysource DC–DC converter for renewable energy sources. In: Proc. IEEE SPEC ‘16, 2016, Auckland, pp 1–6
Thummala P, Maksimovic D, Zhang Z, Andersen MAE (2016) Digital Control of a HighVoltage (2.5 kV) Bidirectional DC–DC Flyback Converter for Driving a Capacitive Incremental Actuator. IEEE Trans Power Electron 31(12):8500–8516
Amjadi Z, Williamson SS (2014) Digital control of a bidirectional DC/DC switched capacitor converter for hybrid electric vehicle energy storage system applications. IEEE Trans Smart Grid 5(1):158–166
Baek J, Choi W, Cho B (2013) Digital adaptive frequency modulation for bidirectional DC–DC converter. IEEE Trans Ind Electron 60(11):5167–5176
Guida B, Rubino L, Marino P, Cavallo A (2010) Implementation of control and protection logics for a bidirectional DC/DC converter. In: Proc IEEE Int Symp Ind Electron. 2010, Bari, pp 2696–2701
Cornea O, Andreescu G, Muntean N, Hulea D (2017) Bidirectional power flow control in a DC microgrid through a switchedcapacitor cell hybrid DC–DC converter. IEEE Trans Ind Electron 64(4):3012–3022
Forouzesh M, Siwakoti YP, Gorji SA, Blaabjerg F, Lehman B (2017) Stepup DC–DC converters: a comprehensive review of voltageboosting techniques, topologies, and applications. IEEE Trans Power Electron 32(12):9143–9178
Jung J, Kim H, Ryu M, Baek J (2013) Design methodology of bidirectional CLLC resonant converter for highfrequency isolation of DC distribution systems. IEEE Trans Power Electron 28(4):1741–1755
Corradini L, Mattavelli P (2008) Modeling of multisampled pulse width modulators for digitally controlled DCDC converters. IEEE Trans Power Electron 23(4):1839–1847
Ilic M, Maksimovic D (2008) Digital average currentmode controller for DC–DC converters in physical vapor deposition applications. IEEE Trans Power Electron 23(3):1428–1436
RamrezMurillo H, Restrepo C, Konjedic T, Calvente J, Romero A, Baier CR, Giral R (2018) An efficiency comparison of fuelcell hybrid systems based on the versatile buck–boost converter. IEEE Trans Power Electron 33(2):1237–1246
RamrezMurillo H, Restrepo C, Calvente J, Romero A, Giral R (2015) Energy management of a fuelcell serial–parallel hybrid system. IEEE Trans Ind Electron 62(8):5227–5235
RamírezMurillo H et al (2014) Energy management dc system based on currentcontrolled buckboost modules. IEEE Trans Smart Grid 5(5):2644–2653
Jones DC, Erickson RW (2013) A nonlinear state machine for dead zone avoidance and mitigation in a synchronous noninverting buck boost converter. IEEE Trans Power Electron 28(1):467–480
Restrepo C, Konjedic T, Member S, Calvente J, Giral R, Member S (2015) Hysteretic transition method for avoiding the deadzone effect and subharmonics in a noninverting buckboost converter. IEEE Trans Power Electron 30(6):3418–3430
Zhang N, Zhang G, See KW (2018) Systematic derivation of deadzone elimination strategies for the noninverting synchronous buckboost converter. IEEE Trans Power Electron 33(4):3497–3508
Callegaro L, Ciobotaru M, Pagano DJ, Turano E, Fletcher JE (2018) A simple smooth transition technique for the noninverting buckboost converter. IEEE Trans Power Electron 33(6):4906–4915
VidalIdiarte E, MarcosPastor A, Giral R, Calvente J, MartinezSalamero L (2017) Direct digital design of a sliding modebased control of a PWM synchronous buck converter. IET Power Electron 10(13):1714–1720
Chen J, Prodic A, Erickson RW, Maksimovic D (2003) Predictive digital current programmed control. IEEE Trans Power Electron 18(1):411–419
Restrepo C, Konjedic T, FloresBahamonde F, VidalIdiarte E, Calvente J, Giral R (2019) Multisampled digital average current controls of the versatile buckboost converter. IEEE J Emerg Sel Topics Power Electron 7(2):879–890
