Modelling and analysis of three-phase grid-tied photovoltaic systems

Abstract

The global warming of the planet is as a result of human activities. Fossil fuel depletion and its high prices have caused a worldwide economic instability; governments around the world turn to alternative energy sources that are pollution-free. Solar photovoltaic system is one of the biggest renewable energy resources to generate electrical power and the fastest growing power generation in the world. The objectives of this work are: to ensure the maximum power point tracking (MPPT) in the side of the PV panels, to ensure the DC–DC boost converter boosts DC voltage by using the MPPT algorithm and pulse width modulation (PWM) technique, to invert the boosted DC voltage to three-phase AC voltages by using sine PWM technique to five-level VSI, to synchronize the PV-generated power to the grid power aided by the synchronous reference frame (SRF) controller. The step of modelling the photovoltaic system with MATLAB/Simulink was performed with RL-load and L-load and %THD got through FFT analysis. The results show that the DC voltage generated by the PVA produces an AC current sinusoidal at the output of the inverter. The contribution of the PV system to the grid consequently reduces the power fluctuation of the grid.

Introduction

Power demand has increased drastically in societies due to the growing population and industries to meet up with the innovation of ever rising inventions. The power outage rate is high; thus, it can be reduced by connecting additional power generator to support the existing one. This leads to an alternate power generator (solar power) to support the already existing power generator by connecting the solar system tied to an analysed interface of a three-phase utility grid.

Focusing on renewable energy sources (solar plants, hydropower plants, wind farms, biogas plants, and tidal wave units) is impeding on daily due to the failures conferred by the conventional fossil fuel power generation (diesel generators, thermal plants, and nuclear plants); the massive exhaustion and the tremendous environmental hazards they produce [1]. Hydropower is a big power-generating plant and can be used for a massive load demand among the listed renewable sources, but its build-up takes years and its installation is expensive. As a result, wind farms are looked at for replacement, which also generate huge power but in areas far from where the power can be used. Hence, it can be concluded that solar plants are the best power generator in either small or large quantities [2,3,4,5,6,7].

Solar irradiation from the sun when carefully harnessed can generate direct current (DC) power through a set of photovoltaic arrays (PVA). As the single-phase AC or the three-phase AC loads run on AC voltage, the DC power generated from the PVA should be converted to either of single-phase AC or three-phase AC. Studies and researches are ongoing on the modes of conversion with respect to various converters in order to improve the efficiency and to reduce harmonic generation. It has been seen by many authors on how the idea of multilevel converters can be used; these converters were introduced in 1975 [8]. It has been proposed that the three major topologies for three-phase grid-tied multilevel converters for PV systems are: the cascaded H-bridge, the diode-clamped and the flying capacitor multilevel converters [9,10,11,12,13,14,15]; all are complicated circuits and control problems. Previous researchers used conventional voltage source inverter (VSI) for transforming DC voltage received from the PVA to AC voltage for injection to the utility grid. This six-switch two-level VSI requires large inductor capacitor (LC) filters for high harmonics reduction, produced by the inverter; thus, high installation cost of the PV plant for transmission of large power is required. The unit vector template feedback control is used, which takes inputs only from the grid. As the result, this converter and the controller are replaced by a five-level VSI and a synchronous reference frame (SRF) controller that gets feedback from the grid voltages, currents, and DC voltages of the inverter. Also, the materials that are used as well as the methods that are applied to model the PV system are described in the section below.

Materials and methods

Modelling of the photovoltaic array

This is a DC source that converts solar irradiance incident on it to generate power. Each panel on the array is made up of p-type and n-type materials with silicon doping to produce holes and electrons, respectively. The input variables to the PV array are: irradiance and ambient temperature, whereas the output is a voltage signal. With changes in weather conditions, the DC voltage from the PVA varies and cannot be used as input to the five-level VSI. Thus, the PVA is connected to a stabilizing DC-regulated booster converter, which can maintain the output voltages at a particular value for constant DC voltage generation. The single IGBTb switch of the boost converter compares duty ratios generated by the incremental conductance MPPT algorithm. The increase or decrease in duty ratio value is gotten from the ratio comparison errors of voltage and current of the PVA. Without loss of generality, a rise in solar irradiation causes a decrease in duty ratio, while a drop in solar irradiation causes an increase in duty ratio [2]. The boost converter achieves MPP through the incremental conductance MPPT algorithm. A PV cell is represented in Fig. 1 by an electrical equivalent of one diode, series resistance Rs and parallel resistance Rp. The various parameters that characterize the PV cell above, in the equations below, can be found in [17] and the manufacturer of the solar module; Sun Power (SPR-305)—WT also gives the other parameters required to model the solar cells. The datasheet gives the electrical characteristics calculated under the standard test condition (STC) when the temperature T is 25 °C and the irradiance G is 1000 W/m2. The solar cell is modelled and then extended to the model of a PV module and finally the model of a PV array. The output current of the PV cell is:

$$ I_{pv} = I_{ph} - I_{0} \left[ {\exp \left( {\frac{{\left( {qV + R_{S} I_{pv} } \right)}}{akT}} \right) - 1} \right] - \frac{{V_{pv} + R_{S} I_{pv} }}{{R_{P} }} $$
(1)
Fig. 1
figure 1

Model of a PV cell

The current–voltage (IV) characteristics curve of a PV array made up of 35 PV panels (SunPower SPR-305-WHT-U with specifications shown in Table 1) as shown in Fig. 2 is nonlinear and crucially depends on the temperature and the solar irradiation. As represented in Fig. 2, when the irradiation increases, the current increases more than the voltage and thus the power also increases. And when the temperature increases, the current decreases and thus the power decreases too. The PV system has to operate at the MPP, which is made possible through an INC MPPT algorithm.

Table 1 Data specifications for the Solar Module SPR-305-WHT-U
Fig. 2
figure 2

Characteristics of PV at constant temperature of 25 °C

Modelling of the boost converter and the incremental conductance MPPT technique

The DC–DC boost converter is used to increase of the input voltage of a five-level VSI from the PVA since AC loads work on high voltages. This boost converter is made up of a single IGBTb/diode switch, capacitor (Cb), inductor (Lb) and diode. It is the main tool for obtaining the MPP. The voltage ratio for a boost converter is gotten from the time integral of the inductor voltage by equating it to zero over a switching period. The voltage ratio is equivalent to the ratio of the switching period to the off time of the switch T (IGBTb) such that:

$$ \frac{{V_{{{\text{out}}}} }}{{V_{{{\text{in}}}} }} = \frac{T}{{t_{{{\text{off}}}} }} = \frac{1}{1 - D} $$
(2)

From Eq. (2), the duty ratio D is given as:

$$ D = 1 - \frac{{V_{{{\text{in}}}} }}{{V_{{{\text{out}}}} }} $$
(3)

The incremental conductance algorithm, as shown in Fig. 3, is based on the fact that the slope of the PV array power curve is zero at the MPP, positive on the left of the MPP, and negative on the right of the MPP, as given by the equations below:

$$ \frac{{{\text{d}}P}}{{{\text{d}}V}} = 0,\quad {\text{at}}\;{\text{MPP}} $$
(4)
$$ \frac{{{\text{d}}P}}{{{\text{d}}V}} > 0,\quad {\text{left}}\;{\text{of}}\;{\text{MPP}} $$
(5)
$$ \frac{{{\text{d}}P}}{{{\text{d}}V}} < 0,\quad {\text{ right }}\;{\text{of }}\;{\text{MPP}} $$
(6)
Fig. 3
figure 3

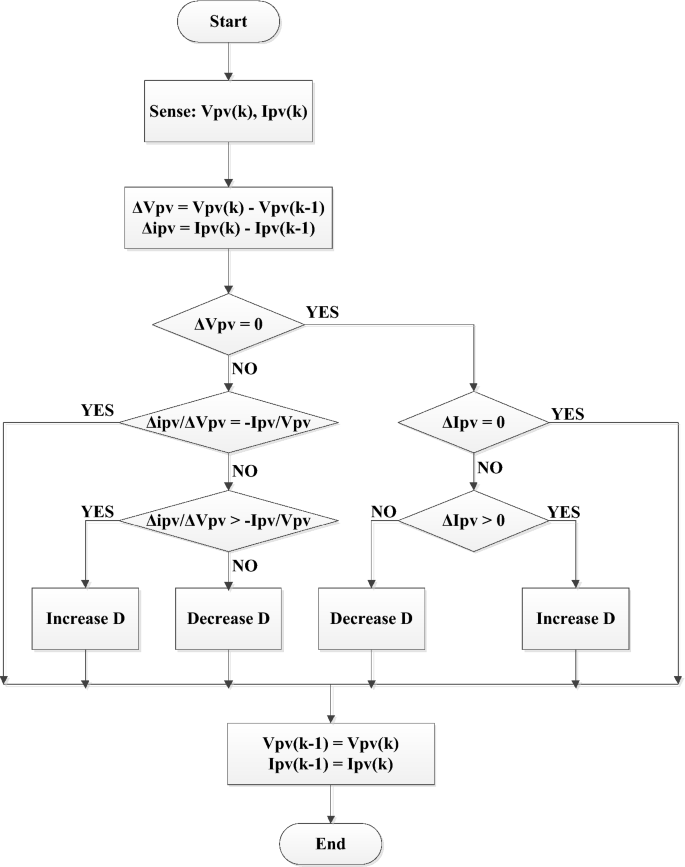

Flowchart for MPPT by incremental conductance algorithm

Since \(\frac{{{\text{d}}P}}{{{\text{d}}V}} = I + V\frac{{{\text{d}}I}}{{{\text{d}}V}} \cong I + V\frac{\Delta I}{{\Delta V}}\), Eqs. (4), (5) and (6) give the tracking point (incremental conductance), respectively, as:

$$ \frac{\Delta I}{{\Delta V}} = - \frac{I}{V}, \quad {\text{at }}\;{\text{MPP}} $$
(7)
$$ \frac{\Delta I}{{\Delta V}} > - \frac{I}{V},\quad {\text{left}}\;{\text{of }}\;{\text{MPP}} $$
(8)
$$ \frac{\Delta I}{{\Delta V}} < - \frac{I}{V},\quad {\text{right }}\;{\text{of }}\;{\text{MPP}} $$
(9)

Modelling of the five-level voltage source inverter

A five-level VSI, as shown in Fig. 4, has interconnected capacitors to stabilize and to overshoot the ripple of the output voltages. Since its output voltages have five levels: VDC, VDC/2, 0, −VDC/2 and –VDC, it is called a five-level inverter. The input voltage is from the PVA through the DC–DC boost converter which DC voltage with half the voltage VDC/2 connected through a common neutral point. Also, it is made up of splitting capacitors that generate different voltage levels for switching on/off eight switches (IGBT/diode) on each of the three legs, and diodes for clamping. The diode-clamped and the flying-capacitor inverter topologies are used for the realization of this topology as seen in Fig. 4 with the number of clamping diodes lower than the number in the diode-clamped inverter, and the number of capacitors is also lower than that in the flying capacitor inverter. This inverter is expected to transform the DC power from the PVA to a three-phase AC power fed to the utility grid controlled by a SFR controller module that will produce reference signals to enable the converter to work in synchronization with the utility grid. The capacitors C1, C2, and C3 are for voltage splitting, thus generating various voltage levels for switching. The DC source used need not to be isolated at the input for regenerative applications. The capacitors Cx1 and Cx2 with x = a, b, c are charged. The five-level voltages are generated as per the switching of the eight switches of one leg with the zero-voltage level in charge of discharging and charging the capacitors for achieving voltage across capacitor equalizing, making the converter redundant to voltage variations. The switching states are achieved by sinusoidal PWM technique with reference sine waveform compared to four-level-shifted high-frequency triangular waveforms.

Fig. 4
figure 4

A five-level voltage source inverter circuit

In phase disposition (PD), the carrier modulation technique is the method used for pulse generation where all the carrier waveforms are in phase with no phase shift. The reference sine waveform for the above PD modulation technique is generated by the SRF controller, which generates a reference signal in synchronization to the grid [2].

There exists a redundancy of switching states at levels 1, 2, 3 to charge and to discharge capacitors and no redundancy of switching states at levels 0 and 4. At level 1 capacitor voltages VCx3 and VCx2 are managed, and at level 3 capacitor voltages VCx3 and VCx1 are controlled. Each redundancy state has three capacitors to charge and to discharge with respect to the output current direction, thus decreasing the difference between nominal and measured voltage levels. Furthermore, if the currents flowing through the capacitors to discharge and to charge capacitors C1, C2, and C3 are not regulated, the flying capacitors voltage may differ from what was expected.

The switching sequence for the switches on the first leg (Phase A) is the same switching sequence for both Phases B (Sa9–Sa16) and C (Sa17–Sa24), where the first four switches on each leg stand for the positive section of that leg and the remaining four switches for the negative section for Phase A. In order to achieve this complimentary setting, a NOT gate is used as a logical operator.

Equation (10) gives the possible change in voltages for the given capacitor as:

$$ \Delta V_{cxi} = V_{cxi} - V_{{cxi,{\text{ref}}}} $$
(10)

where i = 1, 2 and 3 and x = a, b and c, Vcxi are capacitor voltages, Vcxi,ref are the monetary values

$$ V_{{cxi,{\text{ref}}}} = \frac{{iV_{{{\text{dc}}}} }}{4},\quad {\text{for}}\;\; i = 1, 2, 3. $$

Vcxi should be set close to zero to accomplish capacitor voltage balancing.

Modelling of the synchronous reference frame controller

This is a module brought up in [2, 16] to test the control of the multilevel inverter’s output voltage in order to match to the grid voltage amplitude, phase and frequency, by taking feedback from the grid three-phase voltages, currents and DC link voltage at the input (as shown in Fig. 5). It should be noted that the DC link in the feedback loop is obtained after currents are converted to d-axis and q-axis.

Fig. 5
figure 5

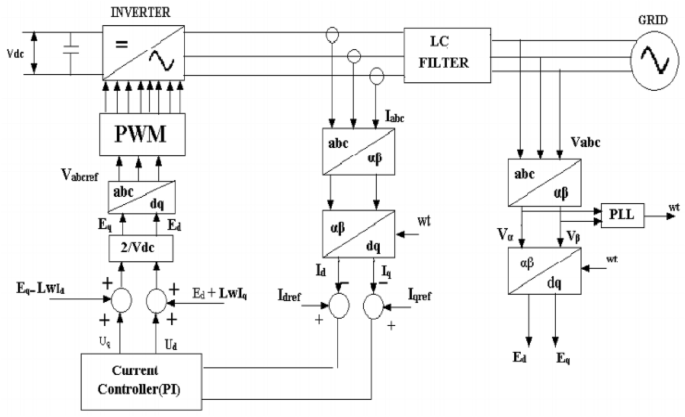

SRF control structure for PVA grid interconnection

Park’s transformation is used by the SRF controller for controlling the current of the inverter with the dq components of the currents calculated for the phase-locked loop (PLL) module working in synchronization to the grid voltage. Let r be a vector in the abc coordinate system with the angle between a and b, b and c, and c and a being 120 degrees. Then, from [16] Eq. (11) is defined:

$$ \vec{r} = r_{a} \cdot \hat{a} + r_{b} \cdot \hat{b} + r_{c} \cdot \hat{c} $$
(11)

where rx, (for x = a, b, c) are projections of the vector r in the directions a, b and c, respectively.

Also, in the αβ coordinate system we have the vector r given as:

$$ \vec{r} = r_{\alpha } \cdot \hat{\alpha } + r_{\beta } \cdot \hat{\beta } $$
(12)

where rα and rβ are projections of the r vector in direction of α and β, respectively. The relation between αβ and abc is gotten as demonstrated below:

Firstly, the projection of vector r in the α-direction, rα is given by

$$ \begin{aligned} r_{\alpha } & = \vec{r} \cdot \hat{\alpha } \\ r_{\alpha } & = r_{a} - \frac{1}{2}r_{b} - \frac{1}{2} r_{c} \\ \end{aligned} $$
(13)

Also, rβ projection of r vector in the direction of β is given by:

$$ \begin{aligned} r_{\beta } & = \vec{r} \cdot \hat{\beta } \\ r_{\beta } & = \frac{\sqrt 3 }{2}r_{b} - \frac{\sqrt 3 }{2} r_{c} \\ \end{aligned} $$
(14)

Thus,

$$ \left( {\begin{array}{*{20}c} {r_{\alpha } } \\ {r_{\beta } } \\ 0 \\ \end{array} } \right) = \left( {\begin{array}{*{20}l} 1 \hfill & { - \frac{1}{2}} \hfill & { - \frac{1}{2}} \hfill \\ 0 \hfill & {\frac{\sqrt 3 }{2}} \hfill & { - \frac{\sqrt 3 }{2}} \hfill \\ {\frac{1}{\sqrt 2 }} \hfill & {\frac{1}{\sqrt 2 }} \hfill & {\frac{1}{\sqrt 2 }} \hfill \\ \end{array} } \right)\left( {\begin{array}{*{20}c} {r_{a} } \\ {r_{b} } \\ {r_{c} } \\ \end{array} } \right) $$
(15)

And,

$$ \left( {\begin{array}{*{20}c} {r_{d} } \\ {r_{q} } \\ 0 \\ \end{array} } \right) = \left( {\begin{array}{*{20}l} {\cos \theta } \hfill & {\sin \theta } \hfill & 0 \hfill \\ { - \sin \theta } \hfill & {\cos \theta } \hfill & 0 \hfill \\ 0 \hfill & 0 \hfill & 1 \hfill \\ \end{array} } \right)\left( {\begin{array}{*{20}l} 1 \hfill & { - \frac{1}{2}} \hfill & { - \frac{1}{2}} \hfill \\ 0 \hfill & {\frac{\sqrt 3 }{2}} \hfill & { - \frac{\sqrt 3 }{2}} \hfill \\ {\frac{1}{\sqrt 2 }} \hfill & {\frac{1}{\sqrt 2 }} \hfill & {\frac{1}{\sqrt 2 }} \hfill \\ \end{array} } \right)\left( {\begin{array}{*{20}c} {r_{a} } \\ {r_{b} } \\ {r_{c} } \\ \end{array} } \right) $$
(16)

By using Clark’s transformation and from αβ-coordinates to dq-coordinates (Parks transformation), Eq. (17) is obtained.

$$ \left( {\begin{array}{*{20}c} {r_{d} } \\ {r_{q} } \\ 0 \\ \end{array} } \right) = \sqrt{\frac{2}{3}} \left( {\begin{array}{*{20}l} {\cos \theta } \hfill & {\frac{ - 1}{2}\cos \theta + \frac{\sqrt 3 }{2}\sin \theta } \hfill & {\frac{ - 1}{2}\cos \theta - \frac{\sqrt 3 }{2}\sin \theta } \hfill \\ { - \sin \theta } \hfill & {\frac{1}{2}\sin \theta + \frac{\sqrt 3 }{2}\cos \theta } \hfill & {\frac{1}{2}\sin \theta - \frac{\sqrt 3 }{2}\cos \theta } \hfill \\ {\frac{1}{\sqrt 2 }} \hfill & {\frac{1}{\sqrt 2 }} \hfill & {\frac{1}{\sqrt 2 }} \hfill \\ \end{array} } \right) $$
(17)

The dq axis calculation for the given controller is given in the equations below [2]:

$$ \left[ {U_{\alpha } U_{\beta } } \right]^{T} = \left( {{\raise0.7ex\hbox{$2$} \!\mathord{\left/ {\vphantom {2 3}}\right.\kern-0pt} \!\lower0.7ex\hbox{$3$}}} \right)\left[ {1 - 1/2 - 1/2;0 \sqrt 3 /2 - \sqrt 3 /2} \right]^{T} \left[ {U_{a} U_{b} U_{c} } \right]^{T} $$
(18)
$$ \left[ {U_{d} U_{q} } \right]^{T} = \left[ {U_{\alpha } U_{\beta } } \right]^{T} \left[ {\cos \omega t\sin \omega t - \sin \omega t\cos \omega t} \right] $$
(19)

The function U denotes either three-phase voltages or currents. The voltage controller is a PI controller with input taken by comparison between the DC voltage at the DC link capacitor and the reference value given by the user. The output of the voltage controller is direct axis component reference and the quadrature axis reference component is considered to be 0. The current controller produces the needed reference dq voltage reference component with the PI controllers in it. The reference dq voltage components (Ud* and Uq*) are converted to sinusoidal by reverse Park’s transformation [16]. The final three-phase sinusoidal reference waveforms are compared to the phase disposition multicarrier modulation technique for the generation of pulses for the five-level inverter. As the SRF controller uses PLL to generate the reference signals and the PLL is operated with grid voltage as feedback, the inverter operates in synchronization with the grid.

It should be noted that the current PI controllers are used to control the grid current, through the DC link voltage. Their inputs are obtained from currents Id and Iq, and their outputs are the reference voltages Ud and Uq. Parameters kP and kI of these PI controllers are tuned using trial-and-error method.

Modelling of the grid-tied PV system

Figure 6 shows the block diagram of the grid-tied PV system. Using MATLAB/SIMULINK, the whole system has been modelled as shown in Fig. 7. The grid is a 10-kV which has been stepped down to 400 V. The temperature at the surface of the PV array has been taken as constant and equal to 25 °C, while the irradiance varies as follows: 1000–900–700–600 W/m2. The RL load has R = 53 Ω and L = 529 mH. Simulations are done under normal operation (no faults or shadow) and also under faulty conditions (shadow, grid phase failure, etc.).

Fig. 6
figure 6

Basic block diagram of the grid-tied PV system

Fig. 7
figure 7

Simulink model of the whole PV grid-tied system

Results and discussion

Validation of the MPPT algorithm

Figures 8, 9, and 10 show the currents, the voltages, and the powers at the output of the PV array and at the output of the boost DC–DC converter. It should be noted that the boost converter is controlled by an incremental conductance MPPT algorithm. From the obtained results, it is clear that there is an increase in power transferred to the grid. With the fluctuation of the weather conditions, especially the irradiance which changes from 1000 to 600 W/m2, the transferred power drops from 12 to 4 kW, which is still sufficient for the load to operate properly.

Fig. 8
figure 8

Current generated by the PVA versus boosted current from the PVA by boost converter

Fig. 9
figure 9

Voltage generated by the PVA versus boosted voltage from the PVA by boost converter

Fig. 10
figure 10

Power generated by the PVA versus boosted power from the PVA by boost converter

Validation the three-phase inverter

Figure 11 shows the output voltages of the three-phase PV inverter used in this work. The results show that thus the voltages are periodic, they are not sinusoidal. In other to obtain sinusoidal voltages, a pure sine circuit generator made up of LC filters has been added to the output of the inverter. The results are shown in Fig. 12 where the output voltages are now sinusoidal, with respect to the grid voltages. These voltages can now be synchronized with the grid one, in order to allow the load to operate properly (without disturbances). The obtained results are clearly better than those obtained in previous researches like in [6, 13, 15, 16].

Fig. 11
figure 11

Output voltages from the five-level VSI without a pure sine circuit

Fig. 12
figure 12

Output voltages from the five-level VSI with a pure sine circuit

Load voltages and currents

The simulations have done with RL load and with an inductive (L) load. The voltages and the currents at the terminals of the load are represented in Figs. 13 and 14, for an RL load, and in Figs. 15 and 16 for an inductive load. These results are obtained under normal operating conditions (no failure from the grid or from the PV array side). In this case, voltage and current waveforms are normal, with the total harmonics distortion (THD), which is practically equal to zero (see Figs. 17, 18). In order to check the robustness of the control strategy of this system, simulations have also been done with failure in one or another. In Fig. 19, grid Phase B failure has been introduced at t = 0.25 s as seen in Fig. 19a. It can be observed that before and after this time, the load voltages and currents have not changed. This means that the PV array continues to supply the load properly Fig. 19b. In Fig. 20, the failure has been introduced at time t = 0.25 s on the PV array side (rainy time or shadow effect) as it is represented in Fig. 20a. The load voltages and currents represented in Fig. 20b are affected by this failure because the grid continues to supply the load properly. From the obtained results, it can be noted that in case of a fault in one side or another, it does not affect the operation of load. In fact, when there is a phase lost failure from the grid, the PV system continues to supply the load properly. Also, in case of shadow or during a raining day, the grid supplies the load properly. The control technique has improved the smooth operation of the whole system, compared to results obtained those obtained in previous researches like in [6, 13, 15, 16].

Fig. 13
figure 13

Load voltage and current for three-phase RL-load

Fig. 14
figure 14

Va and Ia phase check of the RL-load

Fig. 15
figure 15

Load voltage and current for three-phase inductive load

Fig. 16
figure 16

Va and Ia phase check of the L-load

Fig. 17
figure 17

THD of 0.00% for Vabc with RL-load

Fig. 18
figure 18

THD of 0.00% for Vabc with L-load

Fig. 19
figure 19

Effect of the grid failure on the operation of the load: a grid voltages and currents, b load voltages and currents

Fig. 20
figure 20

Effect of the PV array failure on the operation of the load: a grid voltages and currents, b load voltages and currents

Conclusion

This paper presents the study of a PV system with a developed MPP controller. From the theory of the photovoltaic, a mathematical model of the PV has been presented. The system has been simulated with MATLAB/SIMULINK. A five-level VSI interconnected to grid controlled by SRF structure with PD multicarrier modulation technique is analysed. The connection to grid by means of inverter is synchronized, and the power from the PVA is injected to the system compensating the loads connected. First, the simulations of the PVA showed that the simulated models were accurate to determine the characteristic voltage and current because the current and voltage characteristics are the same as the characteristic given from the data sheet. When the irradiance changes, the PVA output voltage and current also change. The simulation showed that INC algorithm can track the MPP of the PV; thus, the system runs at maximum power no matter what the operation conditions are. The results showed that INC algorithm delivered efficiency close to 100% in steady state. The simulation of the system was performed with RL-load and L-load and %THD gotten through FFT analysis. The results showed that the load is supplied properly even if there is a failure either on the PVA side or on the grid side. With the robust controlled method used, this grid-tied system is suitable to solve major problems faced by some critical loads, which need to be continuously supplied.
