Ultra-high birefringence with tuneable double zero chromatic dispersion-PCF: a theoretical analysis


This work presents photonic crystal fibres made up of four hexagonal shape of four rings. Four structures have been designed and configured. The structures show improvement in optical properties consecutively to achieve the optimum configuration. The full vectorial finite-element method is adopted for this work. COMSOL Multiphysics is used for the simulation. The results show a birefringence of 1.308 × 10−2 at 1.55 µm and tuneable double zero dispersion at wavelengths of 0.99 µm and 1.8 µm for x-polarisation mode. Also, the chromatic dispersion of − 24.062 ps/km nm and nonlinear coefficient of 30.32 W−1 km−1 are obtained at a telecommunication wavelength of 1.55 µm. The proposed photonic crystal fibre can be beneficial in nonlinear and supercontinuum applications since photonic crystal fibres of double zero dispersion demonstrate higher power spectral densities than single zero dispersion.


In the telecommunication market today, there are two main fibre optic waveguides. These are the conventional optical fibre and photonic crystal fibre (PCF). The particular applications of PCF have championed the establishment of Blaze photonics in the United Kingdom, Crystal Fibre A/S Denmark and many others for PCF manufacturing. Furthermore, coming-United States, NTT Japan, and Mitsubishi Cable Japan are companies known for producing conventional fibres and, as such, have also jumped into the production of photonic crystal fibre structures (PCFs) [1].

Conventional optical fibres use a solid core, surrounded by cladding. The fibre core has a refractive index higher than the cladding. The core is usually doped to realise a high refractive index contrast. On the other hand, when it comes to PCFs, the core could be either solid, called effective index PCF, or hollow-core, called bandgap guiding PCF [2].

In conventional step-index fibres, very high Birefringence and tuneable chromatic dispersion are challenging to obtain simultaneously. However, these can be achieved in PCF due to the flexibility in design and guiding mechanism. Birefringence of PCFs maintains the propagation of two orthogonal linear polarisation states over long distances along the fibre.

The contrast between the core and the cladding is higher in PCFs than in conventional step-index fibres. This makes PCFs have higher Birefringence than their traditional step-index counterparts. Birefringence finds applications in fibre lasers, switching, splitting, sensors, telecommunications and supercontinuum generation [3, 4].

Research on PCFs has demonstrated that the core can employ elliptical holes to increase the birefringence [2]. Lee et al. [3] demonstrated recently that a double cladding structure could be used to achieve ultra-high birefringence and a significant negative dispersion. A hybrid cladding can also achieve a birefringence of 10−2 [5]. The core of the PCF can be designed in the shape of alphabets such as Y, T and D to realise a birefringence of the order of 10−2 as submitted by [6]. Also, the cylindrical symmetry of an ideal fibre can be broken through manipulation of the cladding air holes to obtain high birefringence [7]. These papers have shown photonic crystal structures that achieve birefringence of 10−1 to 10−4 [5, 8,9,10,11,12,13,14,15,16]. Also, it has been demonstrated by [17, 18] that the inclusion of elliptical holes in the core can improve birefringence to a very high value of 10−2.

Chromatic dispersion control in optical communication is also critical. If chromatic dispersion is not controlled, it will result in broadening of the optical pulse, which would then cause inter-symbol interference [19]. In PCFs, dispersion consists of waveguide and material. To control chromatic dispersion, the pitch, number of rings of the air holes, the diameter of holes in the cladding, and the number of missing holes can be varied [20]. Dispersion compensation techniques have been investigated by adjusting the hole diameter and hole-to-hole spacing [21, 22]. In [22], rectangular holes were utilised in a core of hexagonal structure to get a birefringence of 10−2. PCF in [23] has been infiltrated by toluene (C7H8) to demonstrate that ultra-flattened near-zero dispersion can be achieved.

A square PCF structure with five-air hole rings was utilised in [24] to get an ultra-high birefringence of 4.404 × 10−2. Another four-ring PCF designed by [25] obtained a 0.6402 ps/nm km chromatic dispersion and 26.27 W−1 km−1 nonlinearity at 1.3 µm wavelength. Ahmed et al. [24] demonstrated birefringence of 10−3 and a zero-dispersion compensation (DC) of 0.9 to 0.95 µm with confinement loss of 39 dB/m for x-polarised mode. Several elliptical PCF structures have been designed by [26,27,28] to obtain 10−2 of birefringence. However these structures and the designs in [17, 18, 25,26,27,28,29] are difficult to fabricate due to the elliptical air holes. A seven-ring square to circular PCF designed by [30] with a high value of birefringence 0.245, a significant negative dispersion of − 722.48 ps/km nm and a nonlinear coefficients value of 21.23 ps/km nm at 1.55 µm has been obtained. However, the structure is bulky with several fabrication challenges. A germanium-doped four-ring PCF structure proposed by [31] has reported a low dispersion value of − 11.8 ps/km nm with a low nonlinearity of 0.0166 W−1 m−1 at 1.55 µm, but the work did not report on birefringence. Furthermore, a five-air hole ring [32] with a high nonlinearity value, high birefringence of the order 10−2 and very high dispersion of − 753 ps/km nm has been suggested. However, this structure is also bulky with some fabrication challenges.

A tuneable zero dispersion was obtained by [33, 34], while [35] reported a large negative, tuneable dispersion by placing seven rectangular air holes inside the core. Despite these remarkable results, the rectangular holes complicate the fabrication process. High negative dispersion and a birefringence of the order of 10−2 has been obtained by [36, 37]. Hassan et al. [38] designed a PCF structure that has demonstrated a high birefringence of 3.15 × 10−2 and two zero dispersion at a range of 0.88–1.20 µm and 1.08–1.29 µm. However, the structure is bulky. Authors in [39] demonstrated that an ultra-flattened dispersion can be obtained in a systematic design of PCF which incorporates odd rings with extra small holes between the lattice. The results also show a nonlinearity value of less than 1.10166W−1 km−1.

Research has shown that obtaining high nonlinearity, high birefringence and negative chromatic dispersion is difficult. PCF can be engineered to simultaneously achieve these results. In this paper, step-by-step design has been done with the aim of improving the PCF structure based on the optical properties realised. The optical properties of interest for applications in optical communication, sensing and optical devices are investigated with re-engineering design PCF1 through to PCF4. Hence, the proposed PCF has been obtained from four PCF structures with each tailored towards an optimum structure. This paper demonstrates that it is possible to obtain an ultra-high birefringence of 1.308 × 10−2, nonlinearity of 30.32W−1 km−1 and chromatic dispersion of − 24.062 ps/km nm at 1.55 µm with double zero tuneable dispersion at wavelength of 0.99 µm and wavelength of 1.8 µm.

Design methodology

In this work, circular air holes have been used with the air hole rings (Nr) = 4. Silica is used for the background. The refractive index of the silica is described to be wavelength dependent. The Sellmeier equation considered for the structure indicates the relationship between the wavelength and the refractive index which is given by [40] in (1), and the parameters are defined in Table 1. The refractive index is denoted as n, and Bi and Ci represent the Sellmeier coefficients with n = 1.45 for pure silica:

$$n^{2} = 1 + \frac{{B_{1} \lambda^{2} }}{{\lambda^{2} - c_{1} }} + \frac{{B_{2} \lambda^{2} }}{{\lambda^{2} - c_{2} }} + \frac{{B_{3} \lambda^{2} }}{{\lambda^{2} - c_{3} }}$$
Table 1 Sellmeier coefficients for pure silica material where n = 1.45

Applying the anisotropic perfectly matched layer (PML) to Maxwell’s curl equation, the vectorial equation can be proved in (2):

$$\nabla \times \left( {\left[ {s^{ - 1} } \right]\nabla \times E} \right) - k_{0}^{2} n^{2} \left[ s \right]E = 0$$

where E is the electric field vector, k0 = 2π/λ is the wave number in vacuum, [s]−1 is an inverse matrix of [s], λ is the wavelength, n is the refractive index of the domain, and [s] is the PML matrix.

Chromatic dispersion is considered the combination of waveguide dispersion and material dispersion. Positive values of chromatic dispersion represent an anomalous dispersion, while the negative values of chromatic dispersion represent normal dispersion. The material dispersion hinges on the wavelength dependence on the refractive index of the material which is a result of the interaction between the molecules or electrons in the material, light and ions. The total dispersion of the PCF is computed using (3)

$$D = - \frac{\lambda }{c}\frac{{\partial^{2} {\text{Re}} (n_{{{\text{eff}}}} )}}{{\partial \lambda^{2} }}$$

where the operating wavelength is denoted by λ. The velocity of light is represented with c, and R(neff) is the real part of the complex effective index.

Perfectly circular core PCF supports two orthogonal linear polarised modes. These two orthogonal linear polarised modes have the same spatial distribution [41]. These two modes degenerate in an ideal fibre with cylindrical symmetry maintained across its length. Also, the modes degenerate due to the refractive index and associated propagation constants of these modes. These two modes have the same real refractive index values. However, internal stress, deviation in the geometry and bending can cause this symmetry to break, resulting in the two orthogonal linear polarised modes propagating with different velocities. The modal birefringence can be obtained using the equation:

$$B = \left| {n_{x} - n_{y} } \right|$$

where the effective refractive indices are denoted as nx for x-polarisation, and ny for y-polarisation fundamental modes, respectively.

If the PCF jacket is considered far from the cladding and the core regions, the guidance of light would be due to the cladding air hole rings which prolong to infinity. Since the layers of the air holes are finite, there is leakage of light from the core to the exterior matrix of the material through the links between the air holes, causing confinement loss [42]. The cladding, made up of finite air holes, causes light to leak from the core towards the exterior, giving rise to confinement loss. Confinement loss can be determined by using the imaginary value of the complex refractive index. Confinement loss (Closs) is calculated by (5)

$$C_{{{\text{loss}}}} = \frac{40\pi }{{\ln \left( {10} \right)\lambda }}{\text{Im}} \left( {n_{{{\text{eff}}}} } \right)\left[ {\frac{{{\text{dB}}}}{{\text{m}}}} \right]$$

The imaginary part of the effective refractive index is denoted as Im (neff).

Effective mode area is determined by computing the integral transformation to the ends and face of the whole fibre. The effective mode area is given by equation in (6), where E gives the amplitude of the transverse electric field.

$$A_{{{\text{eff}}}} = \frac{{\left( {\iint {\left| E \right|^{2} {\text{d}}x{\text{d}}y}} \right)^{2} }}{{\iint {\left| E \right|^{4} {\text{d}}x{\text{d}}y}}}$$

Nonlinear optical effects are noticed when the power density of the light is large enough, no matter the type of material used. The nonlinear coefficient is a parameter that is inversely proportional to the effective mode area [43] and given by Eq. (7);

$$\gamma = \frac{2\pi }{\lambda }\frac{{n_{2} }}{{A_{{{\text{eff}}}} }}$$

where the nonlinear refractive index coefficient of the material is denoted n2 which in this work relates to 2.76 × 10−20 m2/W.

Design and method for proposed structure

A hexagonal structure with circular air hole cladding and a solid core is presented. The optimised design starts with PCF1, which has the lattice, Λ, of the cladding region at 2.3 µm. This structure is designed with an air filling fraction of 0.6. The holes in the rings have been drawn with an air hole size of diameters: d1 = 1.5d, d2 = 1.25d, d3 = d and d4 = 0.75d, respectively, as shown in Fig. 1a, where diameter d = 1.38 µm. It is well known that a large index contrast cannot be obtained in conventional fibres. In PCF however, significant refractive index contrast can be realised with large holes in the cladding, which give rise to a very high birefringence and large chromatic dispersion.

Fig. 1
figure 1

a The cross-section of the descending hole arrangement, PCF1. b Fundamental mode profile at 1.55 µm of x-polarisation mode PCF1

On the other hand, a small refractive index contrast between the cladding and the core can be realised by using small air holes in the cladding, reducing birefringence. A descending air hole ring is used for this work to realise a refractive index contrast that would achieve a very low confinement loss and low effective mode area. Figure 1b shows the fundamental mode profile of x-polarisation at the wavelength of 1.55 µm, indicating very high light confinement in the core. The other three PCFs have been designed to help improve the properties of interest. All four PCFs have been surrounded by PML of regions 1–3 with the computational domain in the direction x and y, marked as Wx and Wy, respectively. The parameters W = 2 µm, Wx = 20.6 µm and Wy = 24 µm, and the refractive index of air is 1.0. Propagation in the Z direction is assumed throughout the analysis.

The design is continued as shown in Fig. 2a (PCF2), which has the lattice, Λ, of the cladding region at 1.7 µm. This structure is designed with an air filling fraction of 0.6. The holes in the rings have been drawn with air hole size of diameters: d1 = 1.5d, d2 = 1.25d, d3 = d and d4 = 0.75d respectively, where diameter, d = 1.02 µm. The PCF2 has been designed to improve the birefringence in PCF1. To accomplish this, the holes at orthogonal axes between rings one and two were changed to have an air filling fraction of d4/Λ = 0.45 and d5/Λ = 0.55 as shown in Fig. 2a. In Fig. 2b (i), (ii), (iii) and (iv) are profiles of the fundamental mode at the wavelength of 1.55 µm for x and y-polarisation modes which indicates high light confinement in the core.

Fig. 2
figure 2

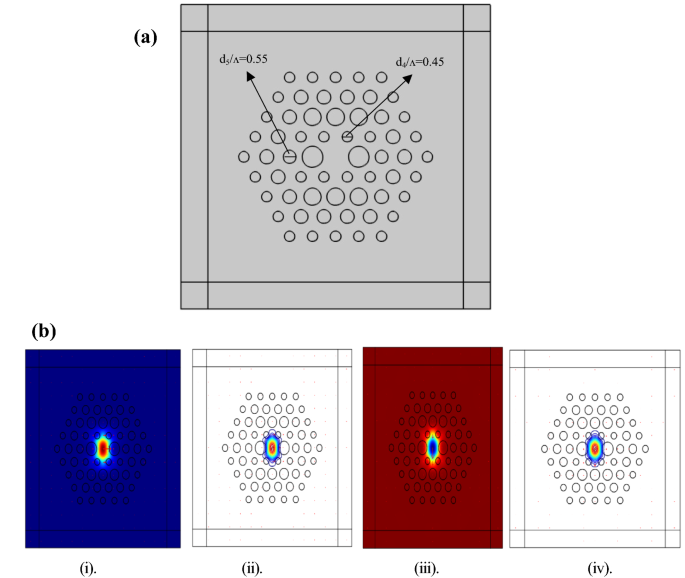

a Cross-section of the PCF2 structure. b The fundamental mode profiles at 1.55 µm for X-polarisation (i, ii). Y-polarisation (iii, iv)

Further to the PCF2 structure, PCF3 is designed with tiny holes introduced between the holes at the orthogonal axes (rings 1 and 2) to improve birefringence further and decrease the value of the confinement loss. The tiny holes of air filling fraction; d4/Λ = 0.22 and d6/Λ = 0.9 have been introduced into the holes in the middle of the first and second ring to improve the dispersion. The structure of PCF3 is illustrated in Fig. 3a. The rest of the air holes have been maintained as indicated in PCF2. The fundamental mode profile of the PFC3 at x- and y-polarisation for wavelength at 1.55 µm is shown in Fig. 3b, c, respectively.

Fig. 3
figure 3

a Cross-section of the structure of PCF3. b The field profile of the fundamental mode at the wavelength of 1.55 µm for X-polarisation mode. c The field profile of the fundamental mode at the wavelength of 1.55 µm for Y-polarisation mode

The final design, shown in Fig. 4a (PCF4), is the optimised PCF structure obtained from PCF1 through to PCF3. The tiny holes introduced in PCF3 between the first and second ring of the orthogonal axes have been removed to study the dispersion further, even though the birefringence is very high. The fundamental mode profiles of x- and y-polarisation modes at 1.55 µm are represented in Fig. 4b, c.

Fig. 4
figure 4

a Cross-section of PCF4. b Fundamental mode profile at the wavelength of 1.55 µm for X-polarisation mode. c Fundamental mode profile at the wavelength of 1.55 µm for Y-polarisation mode

Results and analysis

Analysis of PCF1

The chromatic dispersion investigated relates to the real part of the complex effective index. In Fig. 5, which refers to PCF1, it can be observed that the effective index values decreases with an increase in the values of the wavelength. At 1.55 µm, the real effective index of 1.3928 µm for both x- and y-polarisation is obtained. It can be seen from Fig. 5 that there is no difference in the x- and y-polarisation modes, indicating that the birefringence is very low or insignificant. The descending air hole arrangement gives a very low birefringence at a pitch of 2.3 µm.

Fig. 5
figure 5

Real effective index as a function of wavelength Λ = 2.3 µm for PCF1

Closs of the fundamental mode is calculated using the imaginary part of the complex effective index. Closs for PCF1 is very low, as seen in the mode profile Fig. 1b, which shows the high confinement of light inside the core. A low Closs of 7.48843937 × 10−6 dB/m and 1.53051855 × 10−5 dB/m for x- and y-polarised modes at 1.55 µm have been achieved. The descending air hole arrangement demonstrates very low Closs, as shown in Fig. 6.

Fig. 6
figure 6

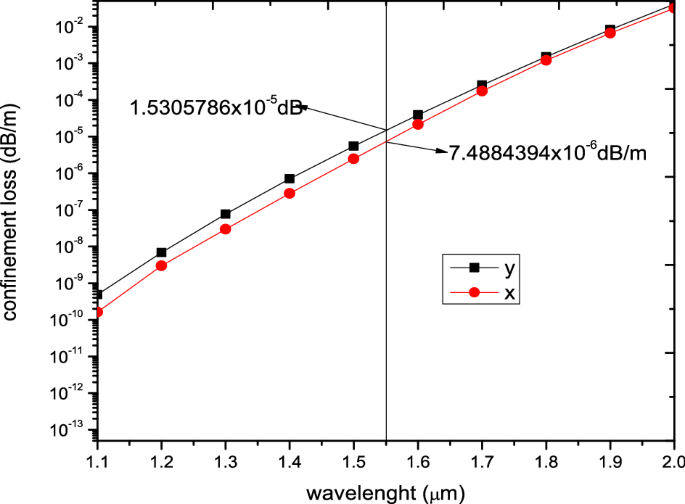

Closs as a function of wavelength Λ = 2.3 µm for PCF1

Figure 7 depicts the effect of the descending hole arrangement on the effective mode area. The effective mode area grows as the wavelength gets longer. PCF1’s effective mode area at 1.55 µm is 3.83 × 10 m2, showing a small effective mode area.

Fig. 7
figure 7

Effective mode area as a function of wavelength Λ = 2.3 µm for PCF1

The chromatic dispersion of PCF1 is depicted in Fig. 8. At 1.55 µm, the chromatic dispersion value is 175 ps/km nm. This indicates that chromatic dispersion is positive for all wavelengths between 1.0 and 1.8 µm.

Fig. 8
figure 8

Chromatic dispersion as a function of wavelength, Λ = 2.3 µm for PCF1

Analysis for PCF2 and PCF3

Birefringence performance analysis of PCF2 and PCF3

Figure 9 demonstrates the link between birefringence and wavelength for PCF2 and PCF3. In PCF2, the birefringence of 10−3 is recorded at all the wavelengths, but for PCF3, 10−3 is realised only at shorter wavelengths and 10−2 for longer wavelengths. The influence of the change of hole sizes on the orthogonal axes has yielded an improvement. Also, the results show that changing the air filling fraction d4/Λ = 0.45 and d6/Λ = 0.55 has increased the birefringence significantly. In PCF3, holes with air filling fractions d4/Λ = 0.22 and d5/Λ = 0.9 have been introduced, causing the birefringence to increase further. The birefringence at 1.55 µm is 0.003446 for PCF2 and 0.013565 for PCF3. This means the value of birefringence increased from 10−3 to 10−2, which is better than [44]. The birefringence of PCF3 is in agreement with [45], while that of PCF2 is in agreement with [46].

Fig. 9
figure 9

Variation of Birefringence as a function of wavelength for PCF2 and PCF3

Chromatic dispersion for PCF2 and PCF3

Figure 10 shows chromatic dispersion for both PCF2 and PCF3. The modal fields are confined to the silica at shorter wavelengths, whereas the effective cladding index falls at longer wavelengths. The zero chromatic dispersion (ZD) changes as the diameter of the air hole and the pitch change. The graph also shows how changing the geometrical parameters can shift the zero-dispersion wavelength from visible to infrared regions. According to the results, zero-dispersion wavelength is realised for x- and y-polarisation of PCF2 at 0.8669 µm and 0.8367 µm, respectively. In the x- and y-polarisation modes, PCF3 registers zero-dispersion at wavelengths of 1.512 µm and 1.367 µm, respectively. These demonstrate a double tuneable zero dispersion. A very high negative dispersion of − 211 ps/nm km can be observed at a wavelength of 1.7 µm for PCF3 at y-polarisation mode. Also, the chromatic dispersion for the PCF2 is higher than that of PCF3 at 1.55 µm. The chromatic dispersion at 1.55 µm for PCF3 is − 9.55 ps/nm km. Therefore, the air hole d5 has reduced dispersion along longer wavelengths.

Fig. 10
figure 10

Change of Chromatic dispersion as a function of wavelength for PCF2 and PCF3

Confinement loss for PCF2 and PCF3

Closs is determined by the imaginary part of the complex effective index. The performance of the confinement loss is demonstrated in Fig. 11. The analysis of confinement loss on the PCF2 and PCF3 as regards the change of d4/Λ = 0.45 and d6/Λ = 0.55 in PCF2 to d4/Λ = 0.22 and d6/Λ = 0.9 in PCF3 is indicated in Fig. 11. At a wavelength of 1.55 µm, PCF2 performed better than PCF3. At a wavelength of 1.55 µm, PCF3 achieved a Closs of 33.65 dB/m. However, the air holes with d4/Λ = 0.45 and d6/Λ = 0.55 reduced the confinement loss to 0.2631 dB/m. This shows that the air with d4/Λ = 0.45 introduced into the first ring at the orthogonal axes and the air hole ring with d6/Λ = 0.55 introduced into the second ring at the centre demonstrate low confinement loss. The performance of PCF2 and PCF3, as seen in Fig. 11, shows that as the wavelength increases, the confinement loss also increases.

Fig. 11
figure 11

Variation of confinement loss as a function of wavelength for PCF2 and PCF3

Analysis of PCF4

PCF4 is the optimised structure from PCF1 to PCF3. The real effective index, the Birefringence, Effective mode area, Closs, nonlinearity, and chromatic dispersion for PCF4 are discussed in this section. The pitch is varied from 1.7 to 2.3 µm to analyse the effect of change in Pitch with respect to the wavelength on the optical properties. In addition, the effect of the change in pitch on the real part of the effective index is analysed in this section.

Real effective index and birefringence for PCF4

The results obtained for the performance of PCF4 in terms of the real portion of the effective refractive index in Fig. 12 shows that refractive index decreases monolithically with respect to increase in the operating wavelength. The graph also indicates that the real effective index increases as hole-to-hole spacing increases.

Fig. 12
figure 12

Change of real effective index as a function of wavelength Λ of 1.7 µm, 1.8 µm, 1.9 µm and 2.3 µm

In Fig. 13, the results show an ultra-high birefringence of the order of 10−2 at 1.55 µm for a hole-to-hole spacing of 1.7 µm, 1.8 µm and 1.9 µm, which agrees with [17, 19, 24, 27, 37, 38] and better than [15, 47, 48]. Also, Fig. 13 indicates birefringence of 10−2, which is maintained over the O to U optical communication band for the hole-to-hole spacing of 1.7 µm, 1.8 µm and 1.9 µm. The Birefringence for PCF3 is in the same range as PCF4. The Birefringence value decreased at the pitch 2.3 µm from 10−2 to 10−3.

Fig. 13
figure 13

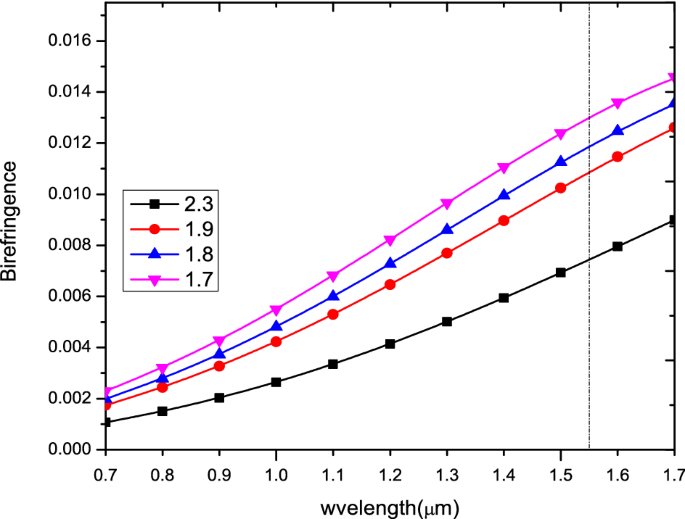

Change of Birefringence as a function of wavelength Λ of 1.7 µm, 1.8 µm, 1.9 µm and 2.3 µm for PCF4

Effective mode area and nonlinearity for PCF4

Nonlinearity is not examined in PCF1, PCF2 and PCF3 because the focus is to examine the performance of birefringence, Closs, and chromatic dispersion as the key optical parameters. Following a significant improvement in birefringence in PCF3 and PCF4, the work is broadened to include effective mode area and nonlinearity to determine the performance of the optimum PCF4 structure. Figure 14 shows the effective mode area as a function of wavelength, indicating that the effective mode area increases as the operating wavelength increases. The reason is that, as the wavelength increases, the mode leaks through the air holes. A nonlinear coefficient of 30.32 w−1 km−1 is obtained for the hole-to-hole spacing of 1.7 µm. The effective mode area that is used to calculate the nonlinearity is shown in Fig. 15. The nonlinearity decreases with an increase in the operating wavelength. The nonlinearity for PCF4 with pitch value of 1.7 µm is 30.32 w−1 km−1 better than [25] and close to [37, 38].

Fig. 14
figure 14

Change of effective mode area as a function of wavelength for Λ of 1.7 µm, 1.8 µm, 1.9 µm and 2.3 µm

Fig. 15
figure 15

Change of nonlinear coefficient as a function of wavelength Λ of 1.7 µm, 1.8 µm, 1.9 µm and 2.3 µm for PCF4

Chromatic dispersion and confinement loss for PCF4

Figure 16 indicates the chromatic dispersion, which increases at the shorter wavelength from negative steadily, crossing the zero line for all the values of Λ = 1.7 µm, 1.8 µm, 1.9 µm and 2.3 µm. The graph indicates a double negative chromatic dispersion for all the hole-to-hole spacing from − 263.87 to − 2.6845 ps/km nm and from − 22.907 to − 234.055 ps/km nm at wavelength ranges of 0.8–0.9 µm and 1.5–1.8 µm, respectively. Also, double zero dispersion is realised at the pitches of 1.7 µm and 1.8 µm.

Fig. 16
figure 16

Change of chromatic dispersion as a function of wavelength at the pitch; 1.7 µm, 1.8 µm, 1.9 µm, and 2.3 µm

In Fig. 17, the value of the confinement loss is 37 dB/m at 1.55 µm for a pitch of 1.7 µm. Figure 17 also shows that confinement loss increases as the hole-to-hole spacing at the cladding decreases [49]. The confinement loss at hole-to-hole spacing of 2.3 µm is 0.200725 dB/m at x-polarisation mode, which is better than PCF2 and PCF3.

Fig. 17
figure 17

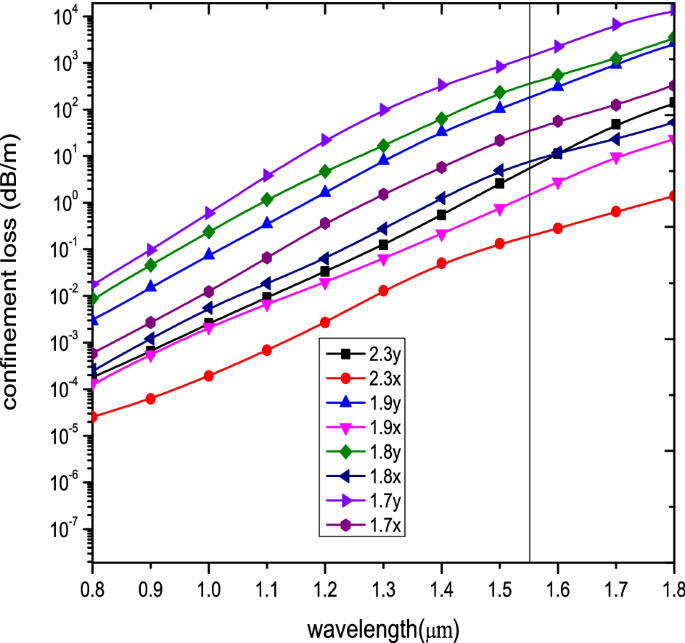

Change of confinement loss as a function of wavelength at pitch 1.7 µm, 1.8 µm, 1.9 µm and 2.3 µm for PCF4

Hole pitch as a function of real effective index

The effect of pitch on the real part of the complex effective index can be observed in Fig. 18. The results indicate that the hole-to-hole spacing (Λ) increases with an increase in the real effective index. This demonstrates that the hole sizes at the core affect the effective index.

Fig. 18
figure 18

Variation of pitch as a function of real part of the effective index for x-polarisation mode

Table 2 compares the performance of the proposed design PCF4 results against other related works.

Table 2 Evaluation of the proposed PCF with other published designs

PCFs are made in a variety of ways, including stack and draw, mechanical drilling [8], Sol–gel [50, 51] and extrusion [52]. The traditional stack and draw approach is appropriate for fabricating the proposed PCF structure because the circular air hole and triangular lattice make manufacturing simple and precise [53]. Mechanical drilling can also be employed to make the suggested PCF because the hole sizes and spacing can be changed [50]. PCFs with triangular lattice structures have been made using the stack and draw technique [54,55,56,57,58], indicating that the proposed structure can be fabricated.


Optical fibre structures suffer from the dispersion of signals leading to inter-symbol interference; hence, a zero chromatic dispersion at a specified wavelength is desirable. An ultra-high Birefringence is a property that is essential in sensing applications. In this paper, multiple optical properties of fibre structure are obtained. A single design presented in some works to demonstrate some optical properties does not show how the various placement of holes influences the optical properties and how the final structure is optimised. The proposed PCF is a step-by-step design approach. Four structures have been considered and configured. The results show a nonlinear coefficient of 30.32 w−1 km−1, a negative chromatic dispersion of − 24.062 ps/km nm and ultra-high Birefringence of 1.308 × 10−2 at 1.55 µm with double zero tuneable dispersion at wavelengths of 0.9 µm and 1.8 µm for x-polarisation and 0.99 µm and 1.42 µm for y-polarisation. The proposed PCF is suitable for high-speed communication systems, optical communication, optical devices and sensing. This proposed PCF structure with circular air holes can be fabricated using the stack and draw method.
