A multi-agent-based symbiotic organism search algorithm for DG coordination in electrical distribution networks

Abstract

Metaheuristic algorithms have become popular in solving engineering optimization problems due to their advantages of simple implementation and the ability to find near-optimal solutions for complex and large-scale problems. However, most applications of metaheuristic algorithms consider centralized design, assuming that all possible solutions are available in one machine or controller. In some applications, such as power systems, especially DG coordination, centralized design may not be efficient. This work integrates a multi-agent system (MAS) into a metaheuristic algorithm for enhanced performance. In a proposed multi-agent framework, the agent implements a metaheuristic algorithm and uses shared information with neighbours as input to optimize the solutions. In this study, a new distributed Symbiotic Organism Search (SOS) algorithm has been proposed and tested in the proposed multi-agent framework. The proposed algorithm is termed a multi-agent-based symbiotic organism search algorithm (MASOS). The MASOS has been tested and compared with other proficient algorithms through statistical analysis using benchmark functions. The results show that the proposed MASOS solves the considered benchmark functions efficiently. Then MASOS was tested for DGs coordination considering load variations in the Tanzanian electrical distribution network. The results show that the coordination of DG using the proposed algorithm reduces power loss and improves the voltage profiles of the power system.

Introduction

In power distribution systems, emerging technologies such as active distribution networks, group microgrid control, DG units, controllable loads and electric vehicles enable power distribution networks to present more stochastic operation conditions rather than deterministic one [1]. The increasing usage of sophisticated electronic equipment in industrial, residential and commercial sectors introduces stochastic behaviour that cannot readily be eliminated from utility systems. However, the inclusion of the DG in the electrical distribution systems can mitigate many problems associated with the stochastic nature of the load. Such advantages of DGs have increased the attention of many researchers in proposing methods for integrating the DGs in the distribution networks [2,3,4]. Bokhari, et al. [5] found that a small percentage of DGs installed in the distribution network can alleviate voltage violation and allow electric utilities to use deeper voltage reduction during critical conditions. Despite the advantages, the DGs are associated with an uncertainty nature which also introduces stochastic behaviour in the distribution network [6].

Resource coordination can achieve efficient system performance in such dynamic operating conditions. DGs coordination in the distribution system is a large-scale dynamic optimization problem with fast-varying system conditions [1]. In power systems, centralized and distributed techniques have been applied in coordinating resources such as DG, loads, electric vehicles, microgrids, and overcurrent relays [7,8,9]. Several researchers have reported the coordination of DGs, such as solar photovoltaic and electric vehicle chargers, in the distribution networks [2, 10, 11]. Kotsalos, et al. [2] proposed a framework for coordinating multiple DGs in low voltage networks to mitigate overvoltage and minimize active power curtailment. Cheng et al. [11] proposed a distributed coordination strategy of solar photovoltaic in low voltage to deal with voltage fluctuation issues. Wang, et al. [10] proposed a bi-level voltage control scheme for coordinating electric vehicle chargers in low voltage networks using a higher-level consensus algorithm and a localized power allocator at the lower level. However, most of these studies involve bi-level control in which the upper level is centralized. The centralized control approaches may encounter computation and communication bottlenecks in handling such a large-scale optimization problem in the electrical distribution network.

Distributed control algorithms have many advantages over centralized algorithms due to their ability to handle large-scale complex optimization problems [12]. Multi-agent System (MAS) is one of the popular techniques for implementing distributed control algorithms. In MAS, multiple agents interact, and use the shared information and defined algorithm to solve a common problem cooperatively. Several techniques based on distributed optimization methods have been proposed for coordinating power system operations, such as consensus-based, decomposition based and metaheuristic based [13]. In consensus-based algorithms, control agents share variables of interest and try to synchronize to reach a common agreement [14, 15]. The consensus algorithms are very popular and have been used many times in coordinating power systems operations [16,17,18,19]. The decomposition-based control involves breaking the complex problems into simpler subproblems and applying the alternating direction method of multipliers (ADMM) [13]. The applications of decomposition methods in power systems have been presented [20, 21]. Due to its simple implementation, the consensus-based approach is more popular than its counterpart ADMM approach. In the metaheuristic approach, agents cooperate with neighbours to implement a specific metaheuristic algorithm that optimizes a given problem [22, 23].

Metaheuristic algorithms are among efficient techniques for solving complex and large optimization problems, including power system problems [24, 25]. Most of the metaheuristic algorithms are designed to operate in a centralized control framework, limiting their use in some applications that need distributed frameworks. In order to design metaheuristic algorithms that operate in distributed systems, studies which integrate multi-agent systems (MAS) and metaheuristic algorithms have emerged and applied to solve different real-world optimization problems. Multi-Agent Genetic Algorithm (MAGA), which integrates MAS and genetic algorithms for optimizing linear systems, was presented by Zhong et al. [22]. A multi-agent quantum evolutionary algorithm for solving global numerical problems was proposed [26]. A Multi-Agent-based Particle swarm optimization (MAPSO) for solving reactive power dispatch problems in transmission systems was proposed by Bokhari, et al. [27]. Acharya and Mishra [23] proposed a multi-agent-based Symbiotic organism Search algorithm for tuning fractional order PID Controller. The studies for metaheuristic algorithms integrated with MAS, reported by authors in [22, 23, 26, 27] involves a lattice-like neighbourhood whereby an agent interacts with only directly connected neighbours. The studies assume a centralized program that initializes and controls interaction among agents. The centralized program assumes a shared memory which enables agents to access the states of neighbours. In such settings, algorithm operations for one agent may directly modify the state of neighbours, which is not the case for real-life systems. In distributed control paradigm and real-life multi-agent systems, each agent operates independently and interacts with neighbours through messaging. In such cases, the reviewed studies for multi-agent-based solutions may not be efficient.

Therefore, this study proposes a distributed multi-agent-based framework to enable the implementation of a metaheuristic algorithm in solving optimization problems in a distributed manner. The proposed multi-agent framework can accommodate many metaheuristic algorithms, including symbiotic organism search (SOS) [28], particle swarm optimization (PSO) [29], teaching learning-based optimization (TLBO) [30], and whale optimization algorithm (WOA) [31], just to mention few. In this work, the SOS algorithm reported by Cheng and Prayogo [28] has been implemented in the proposed framework to form a newly proposed algorithm termed Multi-Agent-based Symbiotic Organism Search (MASOS). The SOS is one of the algorithms with good features such as simple implementation, simple computational, good convergence and parameter independence. A study by authors in [32] found SOS to have the best average CPU time for different problem dimensions. SOS and its variants have been used for several engineering applications, including DG placements in radial distribution networks [33,34,35,36,37]. Also, SOS has been used for solving network reconfiguration with DGs and capacitor placement [38,39,40]. It should be noted that the differences between the proposed MASOS in this study and that proposed by Acharya and Mishra [23] lie in the design, agent interactions and implementations of the algorithm.

The performance of the proposed MASOS algorithm in solving optimization problems has been tested through statistical analysis using ten benchmark functions. In all tested functions, the proposed algorithm has been compared with the original SOS and other algorithms. The comparative results have proved the superiority of the proposed MASOS in solving such benchmark functions. In testing the performance of the proposed algorithm in solving engineering optimization problems, the MASOS has been applied in coordinating DG in the electrical distribution networks considering load variations. The results show that the proposed MASOS algorithm has provided competitive performances with the added advantage of running in a distributed framework.

The major contribution of this paper can be summarised as (i) A generalized multi-agent-based framework for implementing metaheuristic algorithms has been proposed (ii) The DG coordination framework that involves multi-agent and metaheuristic algorithms for solving power loss optimization problems considering load variations has been proposed. (iii) Integration of MAS and SOS algorithm exploits the good features of distributed control systems and the ability of SOS algorithms to solve complex problems resulting in a robust control systems (iv) Unlike other versions of SOS and other versions of distributed multi-agent-based metaheuristic algorithms which involves memory sharing the proposed MASOS is purely distributed such that each agent runs independently.

The rest of this paper is organized as follows. The “Mathematical Problem Formulation” section presents objective functions and constraints. The “Methods” section describes the theoretical background of the multi-agent system, metaheuristic algorithm, proposed multi-agent framework, and proposed MASOS algorithm. The “Results and discussion” section presents results and discussion for considered benchmark functions and compares the performance of the MASOS and other algorithms. It also presents the performance of the proposed MASOS in coordinating the DGs in the electrical distribution networks. The “Conclusion” section concludes this paper and highlights the areas for future work.

Mathematical problem formulation

Load variations in the electrical system change operation variables such as power loss, voltage profile, voltage deviation and operation costs. Studies indicated that optimizing real power loss as an objective function reduces real power loss and improves the entire power system performance parameters [41]. Therefore, in this study, active power loss and voltage deviations have been considered as the objective function to be minimized.

Objective functions

In a radial distribution system, the active power loss is more influential than reactive power loss. The optimization methods aim to minimize the power loss and voltage deviation from the rated voltage values of the power systems [42]. The objective function for power loss and voltage deviations is presented in (1) and (2), respectively. In evaluating the efficacy of the possible solutions, power flow is run to get power system variables. In this study, the Direct Load Flow (DLF) [43] method was used due to its high computational efficiency.

$$\begin{aligned} P_\mathrm{{loss}}= & {} \sum _{i=1}^{nb}I_{i}^2*R_i \end{aligned}$$
(1)
$$\begin{aligned} V_{d}= & {} \sum _{k=1}^{n}{(V_{k}-V_\mathrm{{rated}}) }^2 \end{aligned}$$
(2)

where \(\displaystyle P_\mathrm{{loss}}\) is the total power loss \(\displaystyle I_{i}\) is the current through the branch \(\displaystyle i\) , and \(\displaystyle R_{i}\) the resistance of branch \(\displaystyle i\) and \(\displaystyle nb\) is the number of buses. \(\displaystyle V_{k}\) is the voltage magnitude of the \(\displaystyle k^{th}\) bus, expressed in p.u and \(\displaystyle V_\mathrm{{rated}}\) is the rated voltage of the network, which is 1 p.u. and \(\displaystyle V_{d}\) is the overall voltage deviation of the network.

Constraints

The node voltage for each bus and for each possible solution is given in (3)

$$\begin{aligned} V_\mathrm{{min}}< V_{i}<V_\mathrm{{max}} \ \ \mathrm{{where}} \ i=1,2,3,\ldots ,n \end{aligned}$$
(3)

where \(\displaystyle V_{i}\) is the voltage magnitude of \(\displaystyle k^\mathrm{{th}}\) bus, \(\displaystyle V_\mathrm{{max}}\) is the upper voltage limit and \(\displaystyle V_\mathrm{{min}}\) is lower voltage limit. In this work, the minimum and maximum voltage limits are 0.9 p.u and 1.1 p.u, respectively. The values of voltage limits are according to the Tanzania electrical power system.

Methods

Basic structure of metaheuristic algorithms

The basic structure of most metaheuristic algorithms consists of an outer loop and an inner loop, as shown in Algorithm 1 of Appendix. The outer loop usually represents the number of times the algorithm repeats itself before satisfying termination criteria. The number of times the algorithm uses to achieve a solution for a given problem is among many other criteria for metaheuristic algorithms evaluation. The fewer number of times, the better the algorithm. The inner loop represents the execution of the mathematical and logical formulation of a particular metaheuristic algorithm for each member of the population. The number of times the inner loop executes is equal to the size of the population. The mathematical formulation of the inner loop is the core part which defines the interaction between members in the population/swarm. The inner loop determines the characteristics and performance parameters of metaheuristic algorithms, such as convergence, complexity, accuracy, and exploration.

In a metaheuristic algorithm, each member of the population can find its solution in consensus with others. Most of the algorithm’s applications involve the implementation of centralized cooperation among members of the population. In such implementations, a centralized application implements the properties of members, and in most cases, members exchange information through shared memory or a central controller. In some applications involving distributed control, such implementation technique may not be feasible, limiting the applicability of algorithms in solving complex problems. Although most algorithm designs follow the structure presented in Algorithm 1 of Appendix, the interaction among members and quality of solutions are different for different metaheuristic algorithms. Therefore, this work proposes the framework to enable distributed implementation of metaheuristic algorithms and implement the Symbiotic organism search algorithm in multi-agent.

Proposed multi-agent-based metaheuristic algorithms framework

In Multi-Agent System (MAS) agents achieve their goals through cooperation and competition with or without sharing their knowledge [44]. The agent can sense, communicate and interact with neighbour agents to take actions in response to changes occurring in the environment without external intervention from other agents or humans [23]. Therefore, this work proposes a framework for implementing metaheuristic algorithms in a Multi-agent system following the structure presented in Algorithm 1. In the proposed framework, each member of the population/swarm in the metaheuristic algorithm is implemented as a MAS agent. Each agent shares its current states with neighbours and runs a metaheuristic algorithm to update its current state. Unlike the centralized implementation of metaheuristic algorithms, which involves memory sharing, and the central controller that can access the information of the current global solution at each stage, in a distributed framework, agents only share their states, and the current global solution is not known. This fact may bring about the diversity among different algorithms implemented using this framework since there are some algorithms whose convergence characteristics and solution quality are highly dependent on global value. The generalized execution steps for each agent are presented in Fig. 1.

Fig. 1
figure 1

A proposed framework for multi-agent-based metaheuristic algorithms

Initialization

Agent initialize its states using (4) and evaluate its initial fitness

$$\begin{aligned} X_{i}^0 = X_{i}^l+r*(X_{i}^u -X_{i}^l ) \end{aligned}$$
(4)

where \(\displaystyle X_{i}^0\) is the initial solution of dimension i,\(\displaystyle X_{i}^l\) is lower bound of dimension i ,\(\displaystyle X_{i}^u\) is upper bound of dimension \(\displaystyle i\), \(\displaystyle r\) is random value within uniform distribution \(\displaystyle r\in (0,1)\).

Local neighbourhood identification

Each agent identifies local neighbours who can be socializing with. The local neighbourhood definition depends on the structure of the problem and influences the performance of the algorithms.

Socialization

Socialization involves sharing the states between neighbouring agents. Socialization involves two stages, sending own states and receiving states from neighbours. Upon receiving the states of all its neighbours, agents formulate the population.

Solution state updates

From the population formulated in the socialization stage, the agent updates its states using the inner loop of the corresponding metaheuristic algorithm.

Considering the generalized structure of the Metaheuristic algorithm presented in Algorithm 1 of Appendix, in the proposed framework, the outer loop is presented as the number of times agents exchange information and the inner loop is presented as the steps performed by agents to run the inner loop of the corresponding metaheuristic algorithm as presented in Fig. 1. Based on this framework and assumptions made, implementation of the centrally designed metaheuristic algorithm may change and may be different for different algorithms. In order to test the validity of the proposed framework, the multi-agent-based SOS has been designed and implemented.

The symbiotic organism search algorithm

The Symbiotic Organism Search algorithm is a metaheuristic algorithm inspired by the biological relationship among organisms in the ecosystem. The conventional SOS involves three major phases: mutualism, commensalism, and parasitism. The basic structure of SOS is presented in Algorithm 2 of Appendix, and more details of convention SOS can be found in [28].

Mutualism

In the mutualism phase, the two interacting organisms benefit and enhance their chance of survival. If \(\displaystyle X_i\) and \(\displaystyle X_j\) are two interacting organisms, the new candidate solutions \(\displaystyle X_\mathrm{{inew}}\) and \(\displaystyle X_\mathrm{{jnew}}\) is generated using (5) and (6). The mutualism phase determines the exploitation capability and ensures convergence of the algorithms to the global optimal.

$$\begin{aligned} X_\mathrm{{inew}}= & {} X_i+R*(X_\mathrm{{best}}-\mathrm{{MV}}*BFi) \end{aligned}$$
(5)
$$\begin{aligned} X_\mathrm{{jnew}}= & {} X_j+R*(X_\mathrm{{best}}-\mathrm{{MV}}*BFi) \end{aligned}$$
(6)

where

\(\displaystyle \mathrm{{MV}}=\frac{X_i+X_j}{2}\)and \(\displaystyle R=\mathrm{{rand}}(0,1)\)

The \(\displaystyle \mathrm{{BF}}_{i}\) and \(\displaystyle \mathrm{{BF}}_{j}\) are randomly selected as 1 or 2 which represents the benefit level for organism \(\displaystyle X_i\) and \(\displaystyle X_j\), respectively. The MV is mutual vector which represents the relationship between organism \(\displaystyle X_i\) and \(\displaystyle X_j\) . The \(\displaystyle X_\mathrm{{best}}\) represents the organism with the best objective function in the solution space.

Commensalism

In the commensalism phase, two organisms \(\displaystyle X_i\) and \(\displaystyle X_j\) interact such that one organism benefits while the other organism neither benefits nor suffers. That is \(\displaystyle X_i\) increases its chance of survival in the ecosystem by benefiting from \(\displaystyle X_j\). The new candidate solution for \(\displaystyle X_i\) is given in (7). The commensalism phase determines the direction of search space and balances exploration and exploitation ability of the algorithm.

$$\begin{aligned} X_\mathrm{\mathrm{{inew}}}=X_i+\mathrm{{rand}}(-1,1)*(X_\mathrm{{best}}-X_j) \end{aligned}$$
(7)

Parasitism

In the parasitism phase, two organisms \(\displaystyle X_i\) and \(\displaystyle X_j\) interact such that one organism benefits while another organism suffers. The parasite for the randomly selected organism \(\displaystyle X_j\) called \(\displaystyle X_\mathrm{{jpar}}\) is formed from a randomly selected organism \(\displaystyle X_i\) using (8). The parasitism phase ensures the exploration of the algorithm by introducing new possible solutions to the population.

$$\begin{aligned} X_{jpar}=2*X_i \end{aligned}$$
(8)

The \(\displaystyle X_\mathrm{{jpar}}\) is the new organism want to invade the ecosystem. This is a battle of survival for organism \(\displaystyle X_{j}\). If \(\displaystyle X_\mathrm{{jpar}}\) is better than \(\displaystyle X_{j}\), then \(\displaystyle X_{j}\) is replaced by \(\displaystyle X_\mathrm{{jpar}}\) otherwise \(\displaystyle X_{j}\) hold on as shown in (9) for function minimization problems. The Obj(\(\displaystyle X_{j}\) ) and Obj(\(\displaystyle X_\mathrm{{jpar}}\) ) are the value of objective function for organism \(\displaystyle X_{j}\) and \(\displaystyle X_\mathrm{{jpar}}\), respectively.

$$\begin{aligned} X_\mathrm{{jnew}} = {\left\{ \begin{array}{ll} X_{j} &{} \text {if }Obj(\displaystyle X_{j} )<\text {Obj}(\displaystyle X_\mathrm{{jpar}} )\\ X_\mathrm{{jpar}}&{} \text {if }Obj(\displaystyle X_{j} )>\text {Obj}(\displaystyle X_\mathrm{{jpar}} )\\ \end{array}\right. } \end{aligned}$$
(9)

The proposed multi-agent-based symbiotic organism search

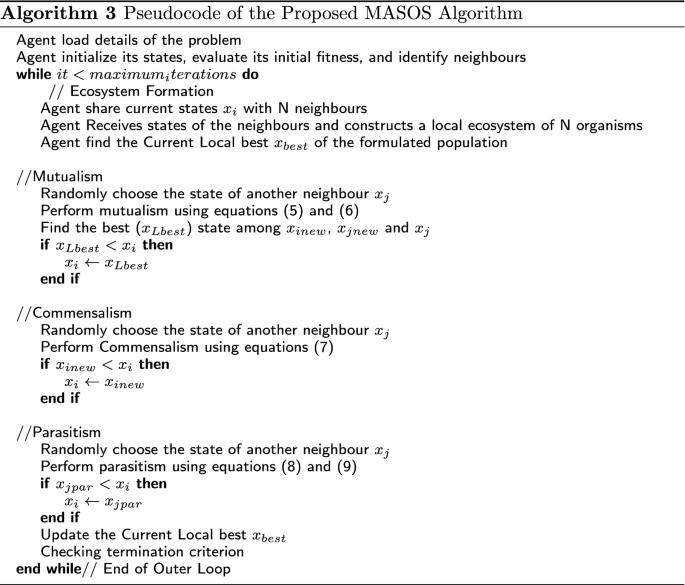

The structure of the basic SOS presented in Algorithm 2 involves the main program, which has access to organism status and memory and controls the organism’s execution and the final solution. The implementation of basic SOS assumes that all organisms can interact directly and can access the optimal global solution in each iteration. In the proposed distributed SOS, each organism takes the property of the agent; therefore, it runs independently and autonomously. The proposed algorithm is purely distributed; agents only communicate through message passing. Upon receiving the states from neighbours, agents consider that information the ecosystem. Hence, at each iteration agent has no information about the global best; only it has information about the current states of neighbours, its state, and its local best. The best available state in the neighbourhood is used as the global best. In the distributed environment, the size of the agent’s neighbourhood may be limited by the structure of the problem and the definition of neighbourhood. This fact may affect convergency and lead to the algorithm which is prone to local trapping. In order to improve the exploration and exploitation of the algorithm, modifications of SOS at the mutualism and parasitism phase have been made. The flowchart and pseudocode of the proposed multi-agent-based SOS are presented in Fig. 2 and Algorithm 3 of Appendix, respectively

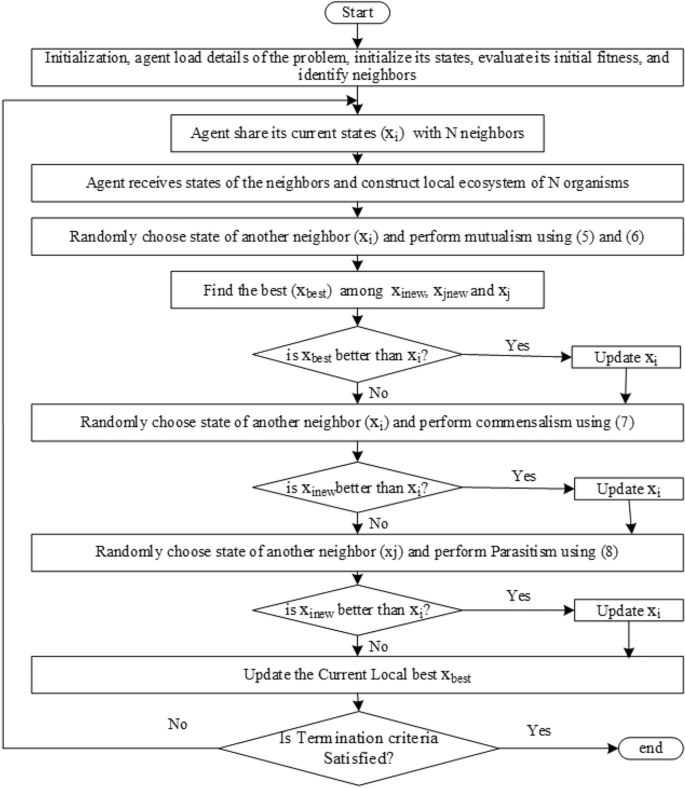

Fig. 2
figure 2

Flowchart of a proposed multi-agent-based SOS

Modification at the mutualism phase

At the mutualism phase, agents generate two new possible states using (5) and (6). It should be stated that in centralized SOS, organisms share a memory; that is, on the execution of organism i, two states can be updated, i.e. state \(\displaystyle X_\mathrm{{inew}}\) and \(\displaystyle X_\mathrm{{jnew}}\) according to (5) and (6). In the proposed distributed SOS, agents do not share a memory; they only exchange messages. Although two solutions are produced by agent \(\displaystyle i\), an agent can only update its state. Comparing the centralized and proposed distributed SOS, in centralized SOS at the mutualism phase, it is possible to have two updates of the organisms in the population, while in a proposed distributed SOS, only one organism state can be updated. This aspect can make the convergence of the proposed algorithm inferior relative to the centralized SOS. In order to improve convergence at the mutualism phase, a simple approach that does not involve any additional function evaluation has been proposed. In the proposed MASOS, the best solution between, \(\displaystyle X_{i}\), \(\displaystyle X_\mathrm{{inew}}\) and \(\displaystyle X_\mathrm{{jnew}}\) is preserved, unlike the centralized SOS, which takes the best between \(\displaystyle X_{i}\) and \(\displaystyle X_\mathrm{{inew}}\) for updating the state of organism i.

Modification at parasitism phase

In the conventional SOS, the purpose of the parasitism phase is to increase exploration capability by trying to introduce new organisms into the ecosystem. This phase focuses much on improving the ecosystem and not necessarily improving agent \(\displaystyle i\). In distributed SOS, the improvement in the population may have a small effect on the improvement in the state of the organism \(\displaystyle i\), since, in distributed SOS, the focus of the agent is to update its own state. In order to improve the exploration capability of the algorithm, the agent \(\displaystyle X_{i}\) generates a parasite vector \(\displaystyle X_\mathrm{{jpar}}\) as per (8). If \(\displaystyle X_\mathrm{{jpar}}\) is better than \(\displaystyle X_{i}\), the \(\displaystyle X_{i}\) update itself with new values \(\displaystyle X_\mathrm{{jpar}}\) as given in (10).

$$\begin{aligned} X_\mathrm{{inew}} = {\left\{ \begin{array}{ll} X_\mathrm{{jpar}} &{} \text {if }Obj(\displaystyle X_\mathrm{{jpar}} )<\text {Obj}(\displaystyle X_{i} )\\ X_{i}&{} \text {Otherwise}\\ \end{array}\right. } \end{aligned}$$
(10)

Results and discussion

The proposed algorithm was first implemented on benchmark functions for validation and then was applied for solving DG Coordination problems in the radial distribution network.

Validation of the proposed algorithm on benchmark functions

To validate the effectiveness of the proposed MASOS algorithm, an experimental study was performed using sets of benchmark functions. The proposed MASOS are compared with those offered by the original SOS and other algorithms through statistical analysis. Statistical analysis includes mean, standard deviation, and Wilcoxon ranks sum test.

Benchmark functions description

In this study, ten benchmark functions classified according to the characteristics, such as separable, non-separable, multimodal, and unimodal, obtained from [23] and listed in Table 1, are used. Functions\(\displaystyle f_{1}\) to \(\displaystyle f_{4}\) are two-dimensional problems and \(\displaystyle f_{5}\) to \(\displaystyle f_{10}\) are thirty-dimensional problems. \(\displaystyle f_{10}\) is unimodal, separable function, \(\displaystyle f_{2}\), \(\displaystyle f_{3}\) and \(\displaystyle f_{5}\) are unimodal, non-separable functions, \(\displaystyle f_{1}\), \(\displaystyle f_{4}\) and \(\displaystyle f_{8}\) are multimodal, separable functions, \(\displaystyle f_{6}\), \(\displaystyle f_{7}\) and \(\displaystyle f_{9}\) are multimodal, non-separable functions. It should be mentioned that difficulty of the problems differs depending on their type and dimension.

Table 1 Benchmark functions

Parameter settings

The designed algorithm in this study is tested against other metaheuristic algorithms including original SOS [28], Particle Swarm Optimization (PSO) [29], Teaching Learning-Based Optimization (TLBO) [45] and Whale Optimization Algorithm (WOA) [31]. The authors implemented all the algorithms, and results were obtained from simulation experiments. For all algorithms size of the ecosystem/population was 30, and the maximum number of iterations per single run was 1000. In order to simplify the analysis, any value less than \(\displaystyle 1E^{-12}\) is considered as 0. All algorithms were implemented in the Java programming language, and MASOS was implemented in the Java Agent DEvelopment (JADE) multi-agent simulation framework. For MASOS, the structure of the neighbourhood has effects on the performance of the algorithm; in this work, all agents are considered as neighbours. All simulations were carried out using IntelliJ IDEA on 3.80GHz 4 Cores core i7 computer with 16GB RAM. The parameter settings for each algorithm are listed in Table 2.

Table 2 Parameter settings

Statistical analysis

Experiments were conducted to test the performance of proposed MASOS against SOS and other algorithms through statistical parameters such as mean, standard deviations (SD), and Wilcoxon ranks sum test. Mean and standard deviation results for all functions obtained after running the algorithms for 40 independent runs are presented in Table 3.

Table 3 Statistical results for benchmark functions

The results for Wilcoxon’s rank-sum statistical test performed at 5\(\displaystyle \%\) significant level are presented in Table 4. This significant level means that if the results show h=1 and p-values less than 0.05 points, it implies that the MASOS is better. If h=0 and p-values greater than 0.05 points, it implies that the MASOS is inferior. If h=0 and p-values are N/A, it implies that there is no significant difference between the two solution sets of compared algorithms.

It is observed from the results for two-dimensional functions \(\displaystyle f_1-f_4\) in Table 3 that all algorithms, including MASOS, were able to find a global minimum for all four functions except WOA, which could not find a global minimum for \(\displaystyle f_1\). For \(\displaystyle f_5\) the TLBO, SOS and MASOS were able to find a global minimum and outperformed PSO and WOA. For \(\displaystyle f_6\) only SOS and MASOS were able to find the global minimum. For \(\displaystyle f_7\) none of the algorithms found a global minimum, but WOA displays the best performance. WOA, SOS and MASOS were able to find a global solution for \(\displaystyle f_8\). None of the algorithms found optimal global solutions for \(\displaystyle f_9\), but the TLBO obtained the best mean value while WOA obtained the best standard deviation. As for \(\displaystyle f_{10}\) all algorithms were able to find a global solution except PSO.

The results for Wilcoxon’s rank sum test for all functions \(\displaystyle f_1-f_{10}\) presented in Table 4 shows that when compared with PSO, the MASOS has achieved better results for six functions inferior for one function and for the rest functions, there was no significant difference. When compared with WOA, the MASOS has achieved better results for nine out of ten functions. When compared with TLBO, the MASOS has achieved better results for six functions and similar results for four functions. When compared with SOS, the MASOS has achieved better results for five functions and similar results for five functions.

Table 4 Results of the Wilcoxon’s rank sum test for MASOS and other algorithms

Considering all functions, the results of the proposed MASOS have been at par with SOS for most functions. Considering the mean values of the algorithms, both SOS and MASOS were able to obtain the best results for eight functions, followed by TLBO, which obtained the best mean values for seven functions. The Wilcoxon rank sum test results show that the proposed MASOS has produced the same or better results than other considered algorithms for most functions. It can be stated that the proposed MASOS has been able to compete and outperform other proficient algorithms such as PSO, WOA and TLBO for most functions. The MASOS has shown better or similar results for most functions than its counterpart SOS algorithm. However, the MASOS has added the advantage that it has been designed for a distributed environment.

Application of MASOS for DG coordination in the electrical distribution network

Testing electrical distribution network

Tanzania Electric Supply Company (TANESCO) Limited is the only company that deals with the generation, transmission and distribution of electricity in Tanzania [46]. Due to the rapid expansion of the distribution network, the efficiency and reliable power supply are among challenges facing the Tanzania utility company. The improvements can be achieved through effective use of information and communication technologies (ICT). Therefore, this study proposes MASOS algorithm for coordinating DG in the Tanzanian electrical distribution network. The single-line diagram for a small power system section taken from the Tanzania secondary distribution network is shown in Fig. 3. The secondary distribution network comprises a three or a single-phase network with a neutral conductor. Single distribution transformers save loads in the secondary distribution networks; thus, a radial power flow analysis is used for identifying power system variables. More information about the line and load data of the network in Fig. 1 can be found in [47]. The network has 79 nodes numbered arbitrarily. The secondary distribution network is not static as it grows as new customers are connected to the network. According to authors in [47], from January 2015 to September 2019, Tanzania utility companies have a growth rate of 32\(\displaystyle \%\) per year. This growth rate is significant for the distribution network as it is associated with changes in the topology and increases load demand, impacting system performances. Therefore, to ensure power system efficiency in such a dynamic system, DG can be used.

Fig. 3
figure 3

Layout of considered section of Tanzanian power distribution network

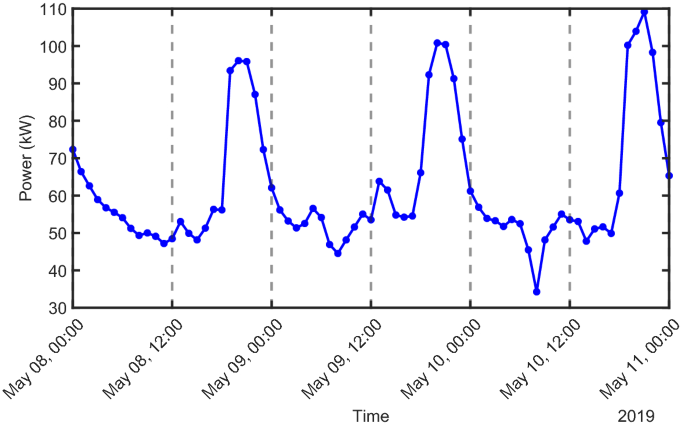

Fig. 4
figure 4

Sample load data for three days

The advantages of DG inclusion can be reaped through their coordination. DG coordination here means changing DG outputs based on changing network parameters. In this study, load variations have been considered. The load data from 2012 to 2019 were obtained from TANESCO’s Automatic Meter Reader (AMR). Data from meters were captured every 20 minutes and included voltage readings, current readings, and power readings. In this study, only current and voltage values were considered. The AMR data were converted from 20 minutes to hourly resolution for simplifying analysis. The sample Load Profile from the study area for three days is presented in Fig. 4.

In testing the efficacy of the proposed algorithm in coordinating DGs in the Tanzanian power system, the following assumptions and settings were considered: -

  1. i.

    The DGs are controllable; that is, the power output can be changed

  2. ii.

    Four DGs were considered and placed at buses 90, 111, 125 and 145, as shown in Fig. 3. Finding optimal DG places was not part of this study

  3. iii.

    On each DG, there is a DG controller which can communicate with the neighbouring controller and run the MASOS algorithm

  4. iv.

    The controller is responsible for changing the DG settings

  5. v.

    Each hour is considered an individual control cycle, meaning that the settings of the DGs are maintained throughout the hour until the next hour when the load changes

  6. vi.

    The available DG settings at any time are applied to the system, meaning there is no need to wait for the final converged value of the algorithm. This assumption ensures near real-time control of the DGs

Results for DGs coordination considering load variations

The proposed algorithm was applied to propose optimal DG settings in response to the changing load based on the stated assumptions. The system power loss and voltage deviation were considered using average hourly load data from 2012 to 2019. Experiments were conducted considering three cases. Firstly, hourly power loss and voltage deviations without any DG were calculated. Secondly, the DGs were placed, and the fixed DGs settings were maintained throughout all considered hours. Thirdly, the proposed MASOS algorithm was applied to coordinate the operations of DGs by suggesting the optimal DG sizes for each loading condition accordingly. The power loss and voltage deviation results are presented in Figs. 5 and 6, respectively. The proposed DG settings for each hour are shown in Fig. 7.

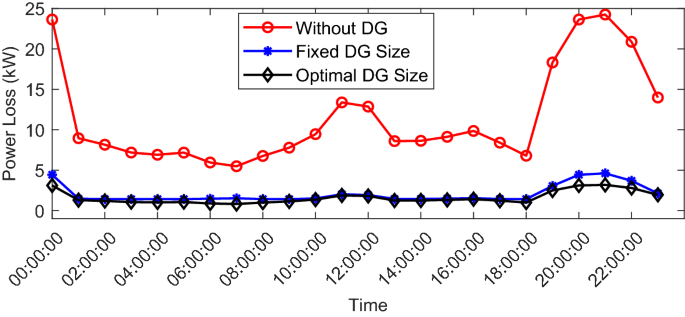

Fig. 5
figure 5

The estimated hourly power losses for Tanzania power system

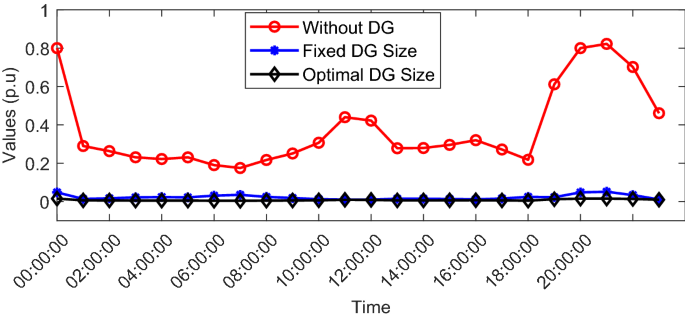

Fig. 6
figure 6

The estimated hourly voltage deviation for Tanzanian power system

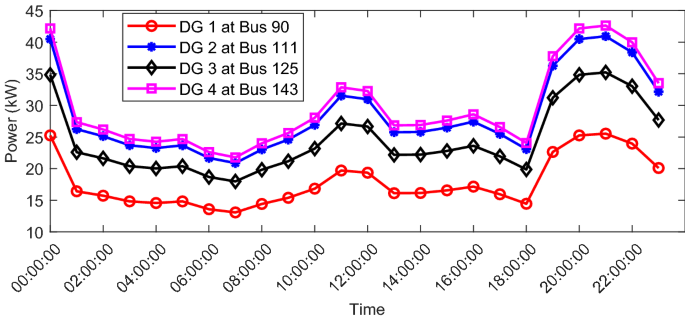

Fig. 7
figure 7

The optimized hourly DG settings for study area power system

It is observed in Fig.  5 that throughout the considered time, the power losses without DGs are higher than when DGs are involved. A similar observation is shown in Fig.  7, where the voltage deviation is large without DGs than with the involvement of DGs. Also, with a fixed size of DGs, though it can significantly improve power loss and voltage profile management, its muted response to changing load is a disadvantage. When the proposed MASOS algorithm is employed, the power loss and voltage deviation are the minimum best. The total power loss per day without DGs is 276.1 kW, with fixed DG sizes is 49.5 kW, and with optimal DG sizes is 38.5 kW, which implies that the proposed DG coordination algorithm improves power system efficiency.

The proposed DG locations were bus 90, bus 111, bus 125 and bus 143. The proposed DG settings on each DG bus for each hour are presented in Fig. 7. For example, from Fig. 7, the DG settings at 8:00 at buses 90, 111, 125 and 143 are 14.4145 kW, 23.0252 kW, 19.8263 kW and 24.003734 kW, respectively.

Conclusion and future work

The designs of many metaheuristic algorithms are based on centralized programs for solving optimization problems which limit their use in distributed control. In this paper, a framework for integrating metaheuristic algorithms and MAS has been proposed. Based on the proposed framework, a new algorithm called MASOS derived from conventional SOS has been presented. The proposed MASOS was implemented in JADE, a distributed control framework for MAS. Standard mathematical benchmark functions of different types and different dimensions have been used to validate the proposed MASOS against other proficient algorithms such as PSO, WOA, TLBO and SOS. The results show that the proposed MASOS has been efficient in solving considered benchmark functions in a distributed manner. Subsequently, the proposed MASOS was applied for DGs coordination to enhance distribution network operations services using the electrical Distribution network segment from Tanzania’s Electrical distribution network. Therefore, it can be concluded that the proposed MASOS is a good choice for solving engineering optimization problems in a distributed manner.

It should be mentioned that the proposed MASOS has been designed to handle changes in the power distribution systems. The future work to extend the proposed study could be to test the performance of the proposed algorithms considering other sources of uncertainty in power systems such as network reconfiguration, load shedding, and DG intermittency. In this study power loss have been considered main function, the proposed algorithm can also be tested for multi-objective functions. Regarding the proposed frameworks for MAS, the authors of this paper suggest that new MAS-integrated algorithms based on other metaheuristic algorithms apart from SOS can also be designed and tested. In MAS, agent neighbourhood structure plays an important role in determining the algorithm’s performance. Therefore, studies to test the performance of algorithms for different types of neighbourhoods can contribute to improving the algorithm. Also, since the implementation of the proposed algorithm was based on MAS, which is near real-life simulation, the authors of this paper intend to implement the proposed MASOS algorithm in real-life application in a pilot site.

Availability of data and materials

All data generated or analysed during this study are included in this published article.

Abbreviations

ADMM:

Alternating direction method of multipliers

AMR:

Automatic meter reader

DG :

Distributed generation

JADE:

Java Agent DEvelopment Framework

MAS:

Multi-agent system

MASOS:

Multi-agent-based symbiotic organism search algorithm

PSO:

Particle swarm optimization

SOS:

Symbiotic organism search

TANESCO:

Tanzania Electric Supply Company

TLBO:

Teaching learning-based optimization

WOA:

Whale optimization algorithm
